SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Rackable C2112-4RP4
(Intel Xeon E5-2697 v2, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 4 Test date: Aug-2013
Test sponsor: SGI Hardware Availability: Sep-2013
Tested by: SGI Software Availability: Jun-2013

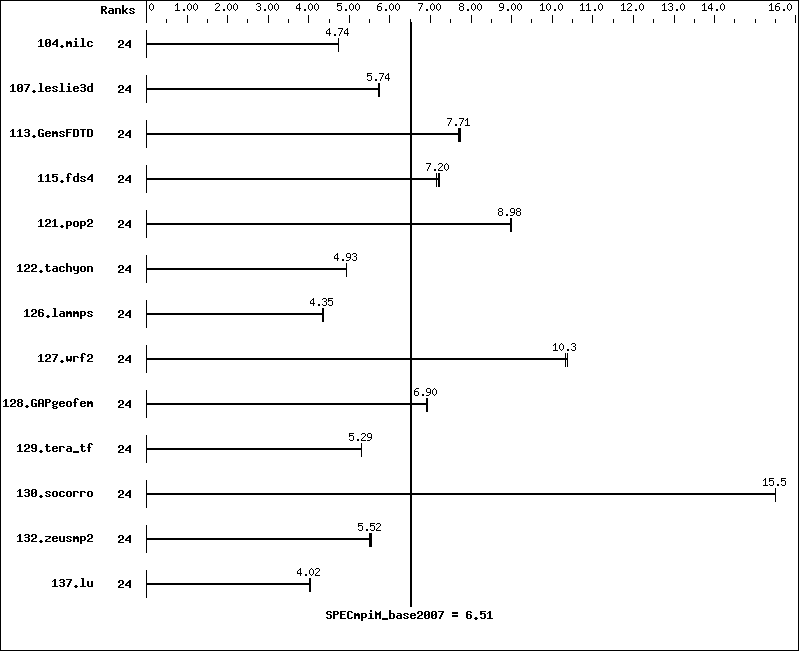

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 24 330 4.74 330 4.74 331 4.73
107.leslie3d 24 911 5.73 909 5.74 910 5.74
113.GemsFDTD 24 815 7.74 820 7.69 818 7.71
115.fds4 24 271 7.21 271 7.20 273 7.16
121.pop2 24 460 8.98 459 8.99 461 8.96
122.tachyon 24 567 4.93 566 4.94 568 4.92
126.lammps 24 671 4.34 671 4.35 670 4.35
127.wrf2 24 751 10.4  755 10.3  755 10.3
128.GAPgeofem 24 298 6.94 300 6.89 299 6.90
129.tera_tf 24 523 5.29 523 5.29 523 5.29
130.socorro 24 246 15.5  246 15.5  246 15.5
132.zeusmp2 24 561 5.53 562 5.52 565 5.50
137.lu 24 914 4.02 915 4.02 909 4.04
Hardware Summary
Type of System: Homogeneous
Compute Node: SGI Rackable C2112-4RP4 Compute Node
Interconnect: InfiniBand (MPI and I/O)
File Server Node: SGI MIS Server
Total Compute Nodes: 1
Total Chips: 2
Total Cores: 24
Total Threads: 48
Total Memory: 128 GB
Base Ranks Run: 24
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2013 for Linux,
Version 14.0.0.051 Build 20130529
C++ Compiler: Intel C++ Composer XE 2013 for Linux,
Version 14.0.0.051 Build 20130529
Fortran Compiler: Intel Fortran Composer XE 2013 for Linux,
Version 14.0.0.051 Build 20130529
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: SGI MPT 2.08 Patch 11012
Other MPI Info: OFED 1.5.2
Pre-processors: None
Other Software: None

Node Description: SGI Rackable C2112-4RP4 Compute Node

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: SGI
Model: SGI Rackable C2112-4RP4 (Intel Xeon E5-2697 v2,
2.70GHz)
CPU Name: Intel Xeon E5-2697 v2
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 24
Cores per chip: 12
Threads per core: 2
CPU Characteristics: Twelve Core, 2.7 GHz, 8.0 GT/s QPI
Intel Turbo Boost Technology up to 3.5 GHz
Hyper-Threading Technology enabled
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip, 30 MB shared / 12
cores
Other Cache: None
Memory: 128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8.0 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen3
Data Rate: InfiniBand 4x FDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8.0 GT/s)
Adapter Driver: OFED-1.5.2
Adapter Firmware: 2.10.2370
Operating System: SUSE Linux Enterprise Server 11 SP2,
Kernel 3.0.74-0.6.6-default
Local File System: xfs
Shared File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Other Software: SGI Accelerate 1.6,
Build 708r14.sles11sp2-1304102205

Node Description: SGI MIS Server

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: SGI MIS Server (Intel Xeon X2670, 2.60 GHz)
CPU Name: Intel Xeon E5-2670
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 16
Cores per chip: 8
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
Hyper-Threading Technology enabled
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (8*16 GB 12800R-11, ECC)
Disk Subsystem: 57.6 TB RAID6
64 x 900 GB SAS (Western Digital WD9001BKHG 10K)
Other Hardware: None
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen3
Data Rate: InfiniBand 4x FDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Adapter Driver: OFED-1.5.2
Adapter Firmware: 2.11.500
Operating System: SUSE Linux Enterprise Server 11 SP2 (x86_64)
Kernel 3.0.74-0.6.6-default
Local File System: xfs
Shared File System: --
System State: Multi-user, run level 3
Other Software: SGI Foundation Software 2.8,
Build 708r14.sles11sp2-1304102205

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor: Mellanox Technologies
Model: None
Switch Model: Mellanox SX6025 InfiniBand Switch
Number of Switches: 4
Number of Ports: 36
Data Rate: InfiniBand 4x FDR
Firmware: 9.1.7000
Switch Model: Mellanox SX6036 InfiniBand Switch
Number of Switches: 2
Number of Ports: 36
Data Rate: InfiniBand 4x FDR
Firmware: 9.1.6500
Topology: Fat Tree
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   ulimit -s unlimited

 Transparent Hugepage : disabled
   Transparent Hugepage is disabled by
   echo never > /sys/kernel/mm/transparent_hugepage/enabled

 BIOS settings:
   Intel BIOS version SE5C600.86B.99.99.x067.060720130951
   Hyper-Threading Technology enabled (default)
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated in the OS via
     /etc/init.d/acpid start
     /etc/init.d/powersaved start
     powersave -f

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

126.lammps:  icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -xAVX   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xAVX   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -O3   -xAVX   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xAVX   -no-prec-div

Base Other Flags

C benchmarks:

 -lmpi

C++ benchmarks:

126.lammps:  -lmpi

Fortran benchmarks:

 -lmpi

Benchmarks using both Fortran and C:

 -lmpi

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel14_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel14_flags.xml.
