SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR665
(AMD EPYC 7H12, 2.6 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 28 Test date: Jan-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Jun-2020
Tested by: Lenovo Global Technology Software Availability: Jun-2020

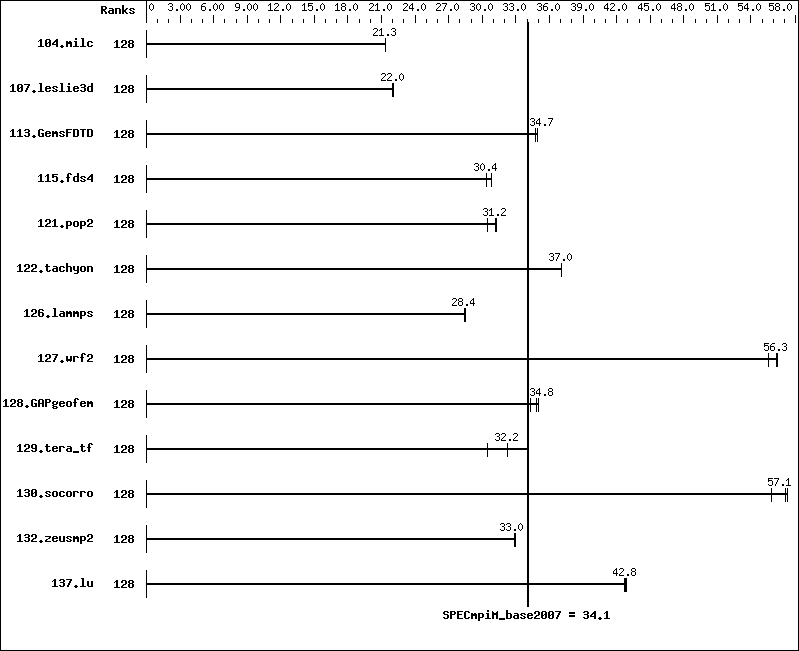

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 128 73.3 21.3 73.5 21.3       73.4 21.3
107.leslie3d 128 237   22.0 237   22.0       238   21.9
113.GemsFDTD 128 185   34.1 180   35.0       182   34.7
115.fds4 128 63.3 30.8 64.3 30.4       64.1 30.4
121.pop2 128 132   31.3 135   30.5       133   31.2
122.tachyon 128 75.5 37.0 57169877   0.0000490 75.4 37.1
126.lammps 128 102   28.5 103   28.4       103   28.4
127.wrf2 128 140   55.6 138   56.4       139   56.3
128.GAPgeofem 128 59.3 34.8 58.9 35.0       60.1 34.3
129.tera_tf 128 81.2 34.1 91.0 30.4       85.9 32.2
130.socorro 128 68.4 55.8 66.7 57.3       66.9 57.1
132.zeusmp2 128 94.0 33.0 94.3 32.9       94.0 33.0
137.lu 128 86.2 42.7 85.8 42.8       85.7 42.9
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR665
File Server Node: NFS
Total Compute Nodes: 1
Total Chips: 2
Total Cores: 128
Total Threads: 128
Total Memory: 1 TB
Base Ranks Run: 128
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Compiler 20.0 for Linux
Version 19.1.0.166 Build 20191121
C++ Compiler: Intel C++ Compiler 20.0 for Linux
Version 19.1.0.166 Build 20191121
Fortran Compiler: Intel Fortran Compiler for Linux
Version 19.1.0.166 Build 20191121
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: MPICH MPI Library
Version 3.3.2
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR665

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: SR665
CPU Name: AMD EPYC 7H12
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
16 MB shared / 4 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gbs/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband Adapter
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 4.7-1.0.0.1.2
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.1,
4.18.0-147.el8.x86_64
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR665
CPU Name: AMD EPYC 7H12 CPU
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
16 MB shared / 4 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 4.7-1.0.0.1.2
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.1
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.
 RAM configuration:
   Compute nodes have 1 x 32 GB RDIMM on each memory channel.
 Add "idle=poll" into grub
 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Hyper-Threading Technology (SMT): Enabled
   NPS4
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 /opt/mpich/m332_I201_H47_R81/bin/mpicc

C++ benchmarks:

126.lammps:  /opt/mpich/m332_I201_H47_R81/bin/mpicxx

Fortran benchmarks:

 /opt/mpich/m332_I201_H47_R81/bin/mpif90

Benchmarks using both Fortran and C:

 /opt/mpich/m332_I201_H47_R81/bin/mpicc   /opt/mpich/m332_I201_H47_R81/bin/mpif90

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -march=core-avx2   -no-prec-div   -ipo

C++ benchmarks:

126.lammps:  -O3   -march=core-avx2   -no-prec-div   -ipo

Fortran benchmarks:

 -O3   -march=core-avx2   -no-prec-div   -ipo

Benchmarks using both Fortran and C:

 -O3   -march=core-avx2   -no-prec-div   -ipo

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20200506.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20200506.01.xml.
