SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR860 V2
(Intel Xeon Platinum 8380H CPU, 2.90 GHz)

MPI2007 license: 28 Test date: Oct-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Oct-2020
Tested by: Lenovo Global Technology Software Availability: Oct-2020

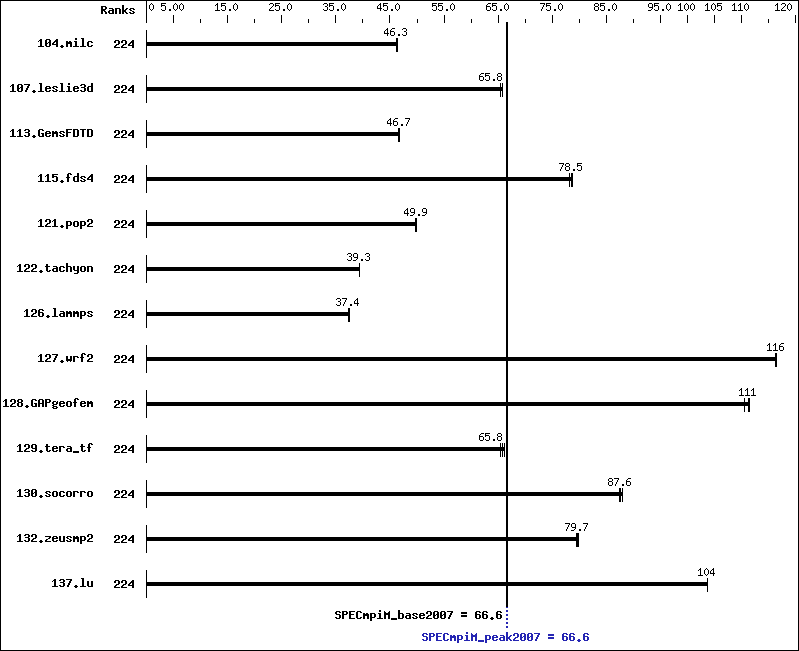

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 224 33.9 46.2 33.8 46.4 33.8 46.3 224 33.9 46.2 33.8 46.4 33.8 46.3
107.leslie3d 224 79.7 65.5 79.2 65.9 79.3 65.8 224 79.7 65.5 79.2 65.9 79.3 65.8
113.GemsFDTD 224 136   46.5 135   46.8 135   46.7 224 136   46.5 135   46.8 135   46.7
115.fds4 224 24.9 78.2 24.8 78.7 24.9 78.5 224 24.9 78.2 24.8 78.7 24.9 78.5
121.pop2 224 82.7 49.9 83.1 49.7 82.8 49.9 224 82.7 49.9 83.1 49.7 82.8 49.9
122.tachyon 224 71.1 39.3 71.0 39.4 71.2 39.3 224 71.1 39.3 71.0 39.4 71.2 39.3
126.lammps 224 77.8 37.5 77.9 37.4 78.2 37.3 224 77.8 37.5 77.9 37.4 78.2 37.3
127.wrf2 224 66.9 116   66.9 117   67.1 116   224 66.9 116   66.9 117   67.1 116
128.GAPgeofem 224 18.5 111   18.7 111   18.6 111   224 18.5 111   18.7 111   18.6 111
129.tera_tf 224 42.3 65.5 42.1 65.8 41.9 66.1 224 42.3 65.5 42.1 65.8 41.9 66.1
130.socorro 224 43.7 87.4 43.4 87.9 43.6 87.6 224 43.7 87.4 43.4 87.9 43.6 87.6
132.zeusmp2 224 39.0 79.6 38.8 79.9 38.9 79.7 224 39.0 79.6 38.8 79.9 38.9 79.7
137.lu 224 35.5 104   35.5 104   35.4 104   224 35.5 104   35.5 104   35.4 104
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR860 V2
Interconnect: Nvidia Mellanox ConnectX-6 HDR Infiniband
File Server Node: NFS
Total Compute Nodes: 2
Total Chips: 8
Total Cores: 224
Total Threads: 224
Total Memory: 3 TB
Base Ranks Run: 224
Minimum Peak Ranks: 224
Maximum Peak Ranks: 224
Software Summary
C Compiler: Intel Parallel Studio C Compiler 20 Update 2 for
Linux
Version 19.1.2.254 Build 20200623
C++ Compiler: Intel Parallel Studio C++ Compiler 20 Update 2
for Linux
Version 19.1.2.254 Build 20200623
Fortran Compiler: Intel Parallel Studio Fortran Compiler 20 Update
2 for Linux
Version 19.1.2.254 Build 20200623
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel Parallel Studio MPI Library for Linux* OS
Version 2020 Update 2 Build 20200624
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR860 V2

Hardware
Number of nodes: 2
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: N/A
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Nvidia Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.1-0.6.6
Adapter Firmware: 20.25.2006
Operating System: SUSE Linux Enterprise Server 15 SP2
5.3.18-22-default
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: None
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Nvidia Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.1-0.6.6
Adapter Firmware: 20.25.2006
Operating System: SUSE Linux Enterprise Server 15 SP2
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Nvidia Mellanox ConnectX-6 HDR Infiniband

Hardware
Vendor: Nvidia
Model: Nvidia Mellanox ConnectX-6 HDR Infiniband
Switch Model: Nvidia Mellanox QM8700
Number of Switches: 1
Number of Ports: 40
Data Rate: 200 Gb/s
Firmware: 3.9.0606
Topology: Mesh
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Peak Optimization Flags

C benchmarks:

104.milc:  basepeak = yes
122.tachyon:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

107.leslie3d:  basepeak = yes
113.GemsFDTD:  basepeak = yes
129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes

Benchmarks using both Fortran and C:

115.fds4:  basepeak = yes
121.pop2:  basepeak = yes
127.wrf2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
130.socorro:  basepeak = yes
132.zeusmp2:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.html,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.xml,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.xml.
