SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR665
(AMD EPYC 7763, 2.45 GHz)

MPI2007 license: 28 Test date: Mar-2021
Test sponsor: Lenovo Global Technology Hardware Availability: Mar-2021
Tested by: Lenovo Global Technology Software Availability: Jun-2020

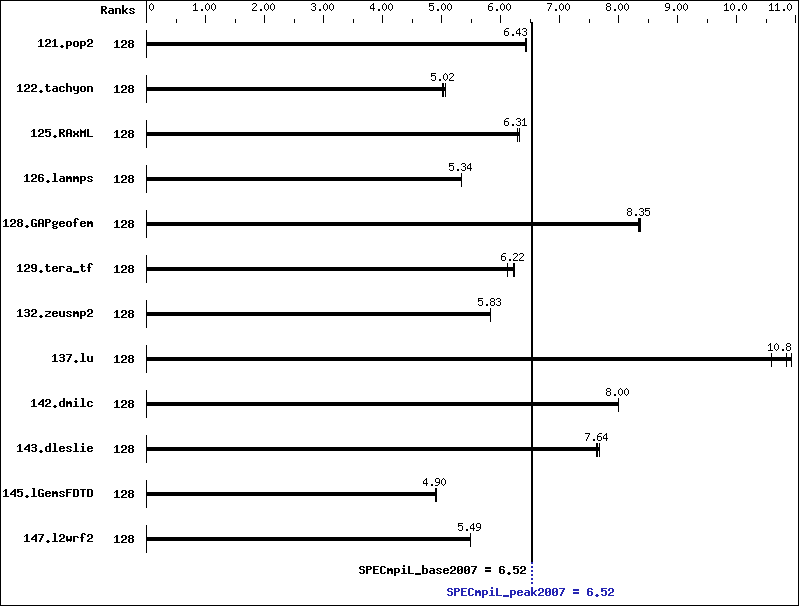

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 128 606 6.43 604 6.44 605 6.43 128 606 6.43 604 6.44 605 6.43
122.tachyon 128 387 5.02 384 5.06 388 5.01 128 387 5.02 384 5.06 388 5.01
125.RAxML 128 462 6.32 462 6.31 464 6.29 128 462 6.32 462 6.31 464 6.29
126.lammps 128 460 5.34 460 5.34 461 5.33 128 460 5.34 460 5.34 461 5.33
128.GAPgeofem 128 709 8.37 711 8.35 711 8.34 128 709 8.37 711 8.35 711 8.34
129.tera_tf 128 180 6.12 176 6.23 177 6.22 128 180 6.12 176 6.23 177 6.22
132.zeusmp2 128 363 5.83 364 5.83 364 5.83 128 363 5.83 364 5.83 364 5.83
137.lu 128 397 10.6  388 10.8  385 10.9  128 397 10.6  388 10.8  385 10.9
142.dmilc 128 461 8.00 460 8.00 461 7.99 128 461 8.00 460 8.00 461 7.99
143.dleslie 128 406 7.64 406 7.63 404 7.67 128 406 7.64 406 7.63 404 7.67
145.lGemsFDTD 128 899 4.90 899 4.91 899 4.90 128 899 4.90 899 4.91 899 4.90
147.l2wrf2 128 1495 5.49 1495 5.49 1495 5.49 128 1495 5.49 1495 5.49 1495 5.49
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR665
File Server Node: NFS
Total Compute Nodes: 1
Total Chips: 2
Total Cores: 128
Total Threads: 128
Total Memory: 1 TB
Base Ranks Run: 128
Minimum Peak Ranks: 128
Maximum Peak Ranks: 128
Software Summary
C Compiler: Intel C++ Compiler 20.2 for Linux
Version 19.1.2.254 Build 20200623
C++ Compiler: Intel C++ Compiler 20.2 for Linux
Version 19.1.2.254 Build 20200623
Fortran Compiler: Intel Fortran Compiler 20.2 for Linux
Version 19.1.2.254 Build 20200623
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux
Version 4.1.0
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR665

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: SR665
CPU Name: AMD EPYC 7763
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2450
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
32 MB shared / 8 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gbs/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband Adapter
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.2-1.0.4
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.3,
4.18.0-240.el8.x86_64
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR665
CPU Name: AMD EPYC 7763 CPU
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2450
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
32 MB shared / 8 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.2-1.0.4
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.3
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.
 RAM configuration:
   Compute nodes have 1 x 32 GB RDIMM on each memory channel.
 Add "idle=poll" into grub
 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Hyper-Threading Technology (SMT): Enabled
   NPS4
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -march=core-avx2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -march=core-avx2   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -march=core-avx2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -march=core-avx2   -no-prec-div

Peak Optimization Flags

C benchmarks:

122.tachyon:  basepeak = yes
125.RAxML:  basepeak = yes
142.dmilc:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes
143.dleslie:  basepeak = yes
145.lGemsFDTD:  basepeak = yes

Benchmarks using both Fortran and C:

121.pop2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
132.zeusmp2:  basepeak = yes
147.l2wrf2:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/AMD_flags.html,
http://www.spec.org/mpi2007/flags/Lenovo_Platform_Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/AMD_flags.xml,
http://www.spec.org/mpi2007/flags/Lenovo_Platform_Flags.xml.
