SPEC® OMPG2012 Result

SGI	SPECompG_base2012 = 29.9
SGI UV1000 (Intel Xeon E7-8837, 2.66GHz)	SPECompG_peak2012 = Not Run

OMP2012 license:	14	Test date:	Sep-2012
Test sponsor:	SGI	Hardware Availability:	Apr-2011
Tested by:	SGI	Software Availability:	Aug-2012

Hardware
CPU Name:	Intel Xeon E7-8837
CPU Characteristics:	Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz:	2667
CPU MHz Maximum:	2800
FPU:	Integrated
CPU(s) enabled:	256 cores, 32 chips, 8 cores/chip
CPU(s) orderable:	2-256 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory:	1 TB (256 x 4 GB 4Rx8 PC3-8500R-7, ECC)
Disk Subsystem:	10 x 1 TB SAS (Seagate Constellation ES, 7200RPM)
Other Hardware:	Routered quad-plane fat tree topology
Base Threads Run:	256
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) SP1 2.6.32.46-0.3.1.3592.0.PTF-default
Compiler:	C/C++/Fortran: Version 13.0 of Intel Composer XE 2013 Build 20120731;
Auto Parallel:	No
File System:	xfs
System State:	Run level 3 ( Multi-user )
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	sgi-accelerate-release: SGI Accelerate 1.3, Build 705rp1.sles11-1110302109 sgi-foundation-release: SGI Foundation Software 2.5, Build 705rp1.sles11-1110302109

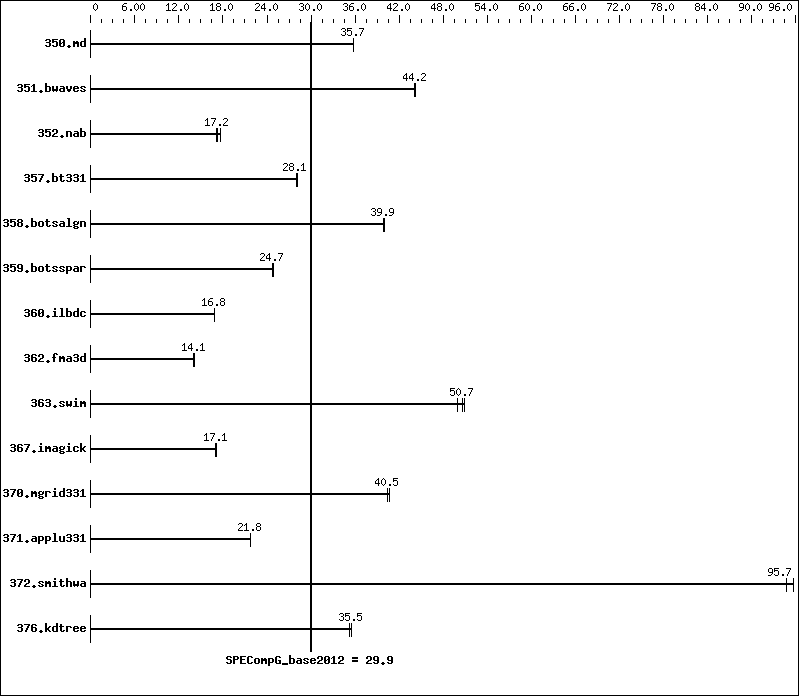

Results Table

Benchmark	Base							Peak
Benchmark	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	256	129	35.8	130	35.7	130	35.7
351.bwaves	256	103	44.0	102	44.2	103	44.2
352.nab	256	227	17.2	226	17.2	220	17.6
357.bt331	256	169	28.1	169	28.0	168	28.1
358.botsalgn	256	109	39.9	109	39.9	109	39.9
359.botsspar	256	211	24.8	212	24.7	213	24.7
360.ilbdc	256	211	16.9	212	16.8	211	16.8
362.fma3d	256	272	14.0	270	14.1	270	14.1
363.swim	256	90.8	49.9	89.0	50.9	89.4	50.7
367.imagick	256	412	17.1	410	17.1	410	17.1
370.mgrid331	256	109	40.4	109	40.5	109	40.7
371.applu331	256	278	21.8	278	21.8	279	21.8
372.smithwa	256	56.0	95.7	56.0	95.7	56.6	94.7
376.kdtree	256	128	35.3	127	35.5	127	35.6

Submit Notes

The config file option 'submit' was used.

General Notes


    Software Environment:
        export KMP_AFFINITY=disabled
        export KMP_STACKSIZE=200M
        export KMP_SCHEDULE=static,balanced
        export OMP_DYNAMIC=FALSE
        limit -s unlimited

    For all benchmarks threads were bound to cores using
    the following submit command:
        dplace -x2 $command
    This binds threads in order of creation, beginning
    with the master thread on logical cpu 0, the first slave
    thread on logical cpu 1, and so on.  The -x2 flag instructs
    dplace to skip placement of the lightweight OpenMP monitor
    thread, which is created prior to the slave threads.
