SPEC® OMPG2012 Result

SGI	SPECompG_base2012 = 6.73
SGI UV20 (Intel Xeon E5-4617, 2.9 GHz)	SPECompG_peak2012 = Not Run

OMP2012 license:	14	Test date:	Mar-2013
Test sponsor:	SGI	Hardware Availability:	Jun-2012
Tested by:	SGI	Software Availability:	Jan-2013

Hardware
CPU Name:	Intel Xeon E5-4617
CPU Characteristics:	Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz:	2900
CPU MHz Maximum:	3400
FPU:	Integrated
CPU(s) enabled:	24 cores, 4 chips, 6 cores/chip
CPU(s) orderable:	2-4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	15 MB I+D on chip per chip
Other Cache:	None
Memory:	512 GB (32 x 16 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	3.6 TB RAID 0 6 x 600 GB SATA (Intel SSD 320, 2.5in SATA 3Gb/s, MLC )
Other Hardware:	None
Base Threads Run:	24
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) SP2 Kernel 3.0.42-0.7-default #1 SMP
Compiler:	C/C++/Fortran: Version 13.1.0.146 of Intel Composer XE 2013, Build 20130121
Auto Parallel:	No
File System:	xfs
System State:	Run level 3 ( Multi-user )
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	SGI Accelerate 1.5, Build 707r85.sles11sp2-1302142007 SGI Foundation Software 2.7, Build 707r85.sles11sp2-1302142007

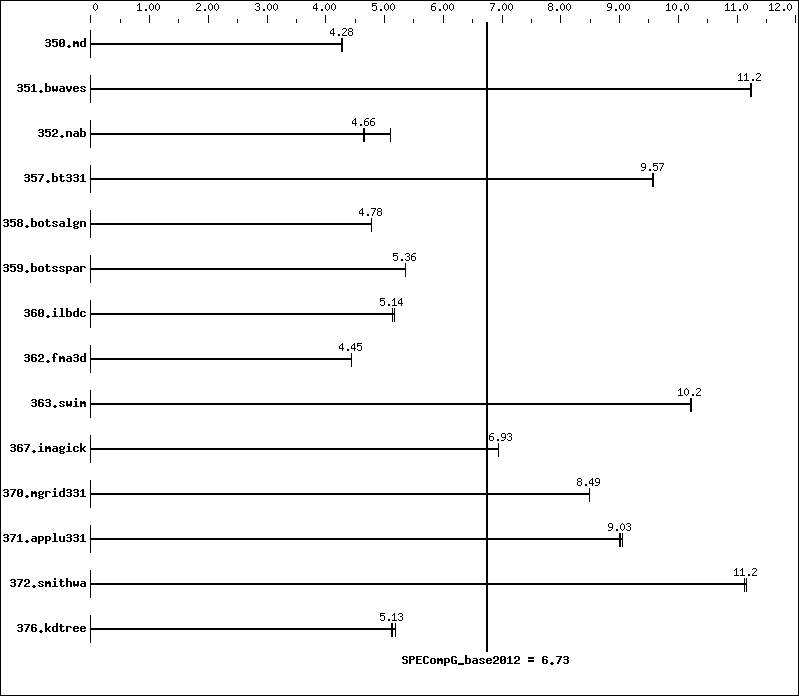

Results Table

Benchmark	Base							Peak
Benchmark	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	24	1082	4.28	1080	4.29	1084	4.27
351.bwaves	24	403	11.3	403	11.2	403	11.2
352.nab	24	835	4.66	762	5.11	836	4.65
357.bt331	24	495	9.57	495	9.58	495	9.57
358.botsalgn	24	910	4.78	910	4.78	910	4.78
359.botsspar	24	979	5.36	979	5.36	979	5.36
360.ilbdc	24	689	5.16	694	5.13	692	5.14
362.fma3d	24	855	4.44	855	4.45	855	4.45
363.swim	24	443	10.2	444	10.2	444	10.2
367.imagick	24	1014	6.93	1014	6.93	1013	6.94
370.mgrid331	24	520	8.49	520	8.49	521	8.49
371.applu331	24	670	9.05	673	9.00	671	9.03
372.smithwa	24	480	11.2	481	11.1	480	11.2
376.kdtree	24	877	5.13	879	5.12	868	5.19

Submit Notes

The config file option 'submit' was used.
    For all benchmarks threads were bound to cores using
    the following submit command:
        dplace -x2 $command
    This binds threads in order of creation, beginning
    with the master thread on logical cpu 0, the first slave
    thread on logical cpu 1, and so on.  The -x2 flag instructs
    dplace to skip placement of the lightweight OpenMP monitor
    thread, which is created prior to the slave threads.

Operating System Notes

        export KMP_AFFINITY=disabled
        export KMP_STACKSIZE=200M
        export KMP_LIBRARY=turnaround
        export KMP_BLOCKTIME=infinite
        export OMP_DYNAMIC=FALSE
        limit -s unlimited
