SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Huawei

SPECompG_base2012 = 7.46

Huawei RH5885H V3 (Intel Xeon E7-8893 v3)

SPECompG_peak2012 = 7.71

OMP2012 license: 27 Test date: Feb-2017
Test sponsor: Huawei Hardware Availability: May-2015
Tested by: Huawei Software Availability: May-2016

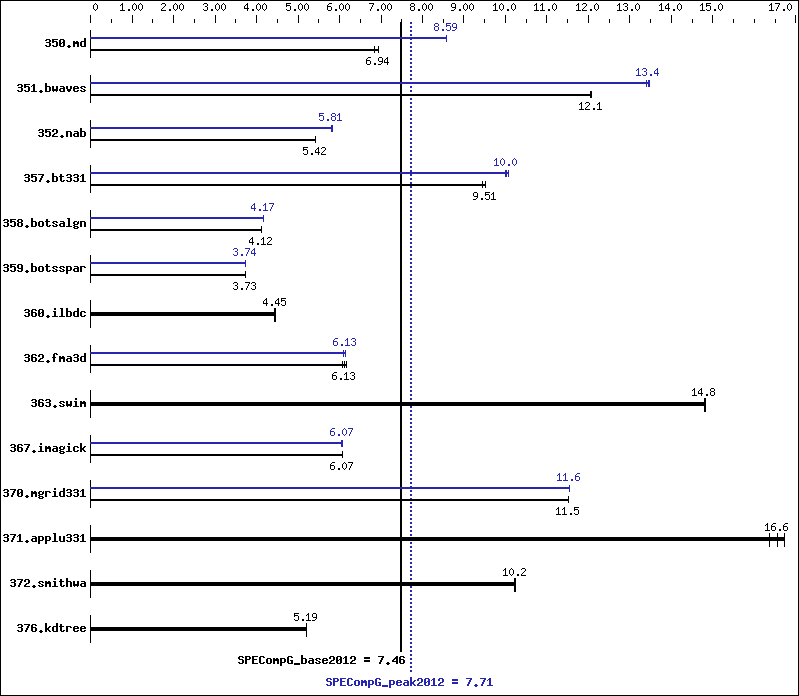

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8893 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 3200
CPU MHz Maximum: 3500
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx8 PC4-2400T-R,
running at 1600 MHz)
Disk Subsystem: 2 x 600 GB SAS, 10K RPM
Other Hardware: None
Base Threads Run: 32
Minimum Peak Threads: 16
Maximum Peak Threads: 32
Software
Operating System: Red Hat Enterprise Linux Server release
3.10.0-327.el7.x86_64
Red Hat Enterprise Linux Server release 7.2
(Maipo)
3.10.0-327.el7.x86_64
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.2.181 of Intel Fortran
Auto Parallel: No
File System: xfs
System State: Run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 32 667   6.94  667   6.94  676   6.85  32 540   8.57  539   8.59  539   8.59
351.bwaves 32 376   12.1   375   12.1   375   12.1   16 337   13.4   336   13.5   338   13.4
352.nab 32 718   5.42  718   5.42  719   5.41  32 671   5.80  670   5.81  667   5.83
357.bt331 32 501   9.45  499   9.51  498   9.51  32 474   10.0   472   10.0   471   10.1
358.botsalgn 32 1055   4.12  1055   4.12  1055   4.12  32 1042   4.17  1042   4.17  1043   4.17
359.botsspar 32 1408   3.73  1405   3.74  1409   3.73  16 1404   3.74  1403   3.74  1404   3.74
360.ilbdc 32 801   4.44  799   4.45  797   4.47  32 801   4.44  799   4.45  797   4.47
362.fma3d 32 625   6.08  617   6.16  620   6.13  32 623   6.10  620   6.13  618   6.15
363.swim 32 306   14.8   306   14.8   306   14.8   32 306   14.8   306   14.8   306   14.8
367.imagick 32 1159   6.07  1159   6.07  1158   6.07  32 1158   6.07  1159   6.07  1161   6.05
370.mgrid331 32 384   11.5   384   11.5   383   11.5   16 383   11.6   383   11.5   383   11.6
371.applu331 32 362   16.7   366   16.6   370   16.4   32 362   16.7   366   16.6   370   16.4
372.smithwa 32 524   10.2   524   10.2   524   10.2   32 524   10.2   524   10.2   524   10.2
376.kdtree 32 866   5.19  866   5.19  866   5.20  32 866   5.19  866   5.19  866   5.20

Platform Notes

 Sysinfo program /specomp/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on localhost.localdomain Mon Feb 13 09:55:07 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8893 v3 @ 3.20GHz
       4 "physical id"s (chips)
       32 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 4
       siblings  : 8
       physical 0: cores 1 5 16 20
       physical 1: cores 1 5 16 20
       physical 2: cores 1 5 16 20
       physical 3: cores 1 5 16 20
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       528087168 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.2 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.2"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.2 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.2:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.2 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.2:ga:server

 uname -a:
    Linux localhost.localdomain 3.10.0-327.el7.x86_64 #1 SMP Thu Oct 29 17:29:29
    EDT 2015 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 13 09:42

 SPEC is set to: /specomp
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-root xfs    50G   27G   24G  54% /

 Additional information from dmidecode:
   BIOS American Megatrends Inc. BLISV789 12/06/2016
   Memory:
    32x   16 GB
    64x NO DIMM NO DIMM
    32x Samsung M393A2K43BB1-CRC 16 GB 1600 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 Power profile set with:
 cpupower -c all frequency-set -g performance

 System settings notes:
 Intel Turbo Boost Technology (Turbo)  : Enabled
 Memory RAS Configuration set to Maximum Performance

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_AFFINITY=compact,1
   ENV_KMP_BLOCKTIME=infinite
   ENV_KMP_DETERMINISTIC_REDUCTION=1
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_SCHEDULE=static,balanced
   ENV_KMP_STACKSIZE=256M
   ENV_OMP_NESTED=FALSE
   ENV_OMP_NUM_THREADS=32

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 Base Optimization Flags
   372.smithwa:base:
     -mcmodel=medium

   376.kdtree:base:
     -mcmodel=medium

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_OMP_SCHEDULE=static,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

350.md:  -O2   -openmp   -ipo    -xCORE-AVX2   -align array64byte
351.bwaves:  Same as 350.md
357.bt331:  -O2   -openmp   -ipo    -xCORE-AVX2   -align array64byte   -mcmodel=medium(*)
360.ilbdc:  Same as 350.md
362.fma3d:  Same as 350.md
363.swim:  Same as 357.bt331
370.mgrid331:  Same as 350.md
371.applu331:  Same as 350.md

(*) Indicates an optimization flag that was found in a portability variable.

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias
372.smithwa:  basepeak = yes

C++ benchmarks:

376.kdtree:  basepeak = yes

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte   -mcmodel=medium(*)
360.ilbdc:  basepeak = yes
362.fma3d:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
363.swim:  basepeak = yes
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=3   -fp-model strict
371.applu331:  basepeak = yes

(*) Indicates an optimization flag that was found in a portability variable.


The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20170317.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20170317.xml.
