SPEC® OMPG2012 Result

Copyright 2012-2018 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

SPECompG_base2012 = 51.1

Superdome Flex (Intel Xeon Gold 6154, 3.00 GHz)

SPECompG_peak2012 = 54.2

OMP2012 license: 1 Test date: Dec-2017
Test sponsor: HPE Hardware Availability: Dec-2017
Tested by: HPE Software Availability: Dec-2017

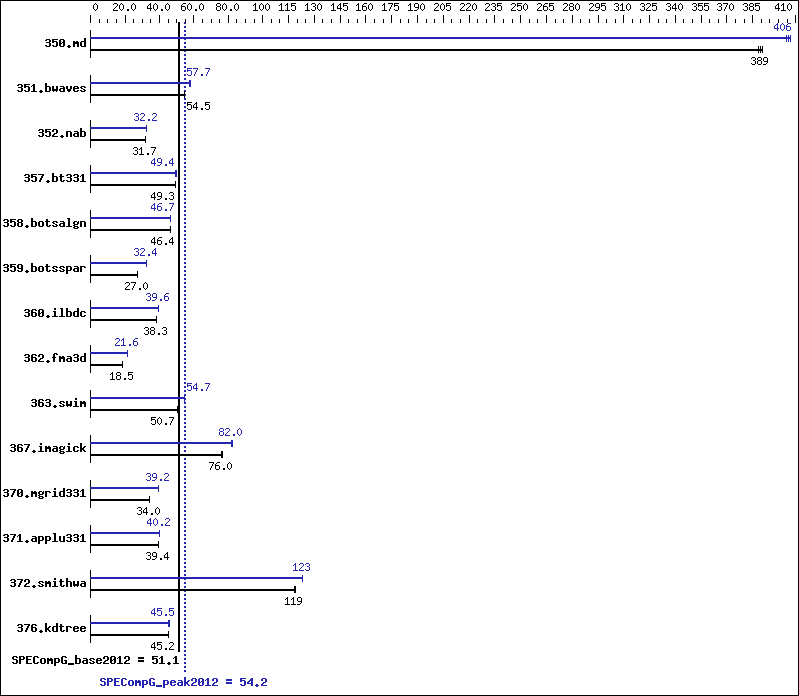

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6154
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 3000
CPU MHz Maximum: 3700
FPU: Integrated
CPU(s) enabled: 144 cores, 8 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 4-8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 24.75 MB I+D on chip per chip
Other Cache: None
Memory: 3 TB (96 x 32 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: tmpfs
Other Hardware: None
Base Threads Run: 276
Minimum Peak Threads: 144
Maximum Peak Threads: 288
Software
Operating System: SUSE Linux Enterprise Server 12 SP2
Kernel 4.4.74-92.38-default
Compiler: C/C++/Fortran: Version 18.0.0.128 of Intel
Composer XE for Linux, Build 20170811
Auto Parallel: No
File System: tmpfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: HPE Foundation Software 1.0,
Build 717a270.sles12sp2-1709012000

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 276 11.9  389    11.9  389    11.8  391    288 11.4  405    11.4  407    11.4  406
351.bwaves 276 83.1  54.5  83.4  54.3  83.0  54.6  288 79.1  57.3  78.4  57.8  78.5  57.7
352.nab 276 123    31.7  123    31.7  122    31.8  288 121    32.2  121    32.2  121    32.2
357.bt331 276 95.8  49.5  96.3  49.2  96.1  49.3  264 95.4  49.7  96.0  49.4  95.9  49.4
358.botsalgn 276 93.8  46.4  93.7  46.4  93.7  46.4  288 93.3  46.6  93.2  46.7  93.2  46.7
359.botsspar 276 192    27.3  194    27.0  194    27.0  144 162    32.4  162    32.5  162    32.4
360.ilbdc 276 92.7  38.4  93.0  38.3  92.9  38.3  288 90.0  39.5  90.0  39.6  89.9  39.6
362.fma3d 276 206    18.5  205    18.5  205    18.5  288 176    21.6  176    21.6  176    21.6
363.swim 276 89.4  50.7  89.4  50.7  89.7  50.5  144 82.9  54.7  82.8  54.7  83.0  54.6
367.imagick 276 92.6  75.9  92.5  76.0  91.8  76.6  180 85.4  82.3  85.7  82.0  86.1  81.6
370.mgrid331 276 130    34.0  130    34.0  130    34.0  144 113    39.2  113    39.2  113    39.2
371.applu331 276 154    39.3  153    39.5  154    39.4  282 151    40.2  152    40.0  151    40.2
372.smithwa 276 45.1  119    45.2  119    45.3  118    144 43.5  123    43.5  123    43.6  123
376.kdtree 276 99.5  45.2  99.4  45.3  99.5  45.2  282 99.0  45.5  98.9  45.5  99.0  45.4

Compiler Invocation Notes

 COPTIMIZE=-O3 -qopt-zmm-usage=high -xCORE-AVX512 -ipo1  -qopenmp -ansi-alias -mcmodel=medium -shared-intel
 CXXOPTIMIZE=-O3 -qopt-zmm-usage=high -xCORE-AVX512 -ipo1  -qopenmp -ansi-alias -mcmodel=medium -shared-intel
 FOPTIMIZE=-O3 -qopt-zmm-usage=high -xCORE-AVX512 -ipo1  -qopenmp -mcmodel=medium -shared-intel

Submit Notes

The config file option 'submit' was used.
For all benchmarks threads were bound to cores using
the following submit command:
    dplace $command
This binds threads in order of creation, beginning
with the master thread on logical cpu 0, the first slave
thread on logical cpu 1, and so on.

Operating System Notes

Transparent Hugepages :
    Transparent Hugepages are disabled by
    echo never > /sys/kernel/mm/transparent_hugepage/enabled

Software Environment:
    export KMP_AFFINITY=disabled
    export KMP_STACKSIZE=200M
    export KMP_SCHEDULE=static,balanced
    export OMP_DYNAMIC=FALSE
    ulimit -s unlimited

The tmpfs filesystem was set up with:
    mount -t tmpfs -o rw,remount,mode=1777,mpol=interleave tmpfs /dev/shm

Platform Notes

Rack Management Controller setting:
   modify npar pnum=0 ras=hpc

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -mcmodel=medium   -shared-intel

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -free
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -O3   -qopt-zmm-usage=high   -xCORE-AVX512   -ipo1   -qopenmp   -mcmodel=medium   -shared-intel

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/HPE-OMP2012-ic18.html,
http://www.spec.org/omp2012/flags/HPE-Superdome_Flex-RevA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/HPE-OMP2012-ic18.xml,
http://www.spec.org/omp2012/flags/HPE-Superdome_Flex-RevA.xml.
