SPEC® OMPG2012 Result

Copyright 2012-2018 Standard Performance Evaluation Corporation

Dell (Test Sponsor: University of Delaware)

SPECompG_base2012 = 7.77

Dell M630 Blade (Intel Xeon E5-2680 v3)

SPECompG_peak2012 = Not Run

OMP2012 license: 056A Test date: Sep-2018
Test sponsor: University of Delaware Hardware Availability: Jun-2018
Tested by: University of Delaware Software Availability: Jun-2018

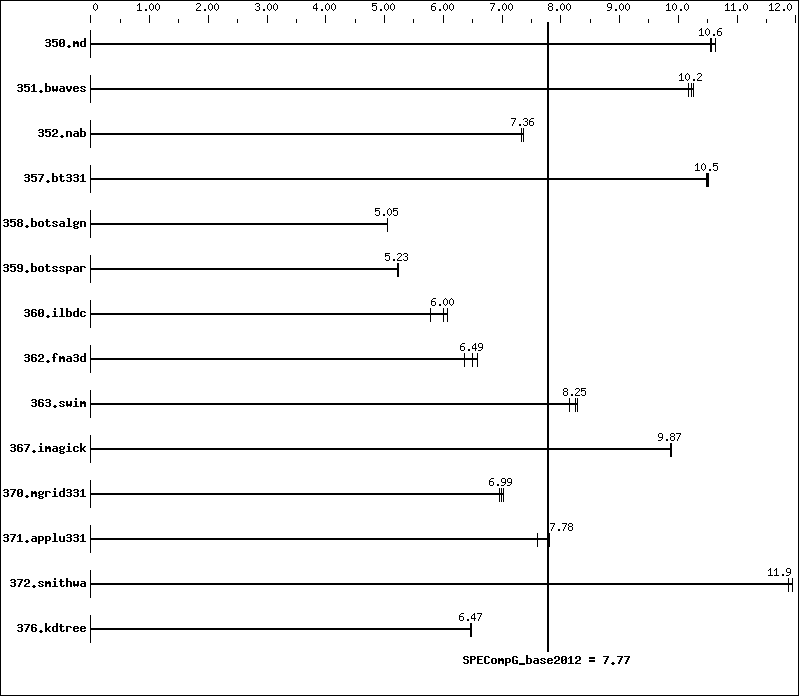

Benchmark results graph
Hardware
CPU Name: Dual Intel Xeon E5-2680 v3
CPU Characteristics: Intel Turbo Boost Technology off,
Hyper-Threading on
CPU MHz: 2500
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC4-2133P-R)
Disk Subsystem: 400GB (SATA Mix Use MLC 6Gbps 2.5in Hot-plug
Drive,13G (400-AEIX) dual SSDs, RAID-1)
Other Hardware: None
Base Threads Run: 44
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: CentOS Linux release 7.5.1804 (Core)
3.10.0-862.3.3.el7.x86_64
Compiler: C/C++/Fortran: Version 18.0.3.222 of Intel
Parallel Studio XE for Linux Build 20180410
Auto Parallel: No
File System: XFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 44 438   10.6   435   10.6   439   10.6
351.bwaves 44 441   10.3   445   10.2   443   10.2
352.nab 44 528   7.36  530   7.33  528   7.37
357.bt331 44 452   10.5   452   10.5   451   10.5
358.botsalgn 44 862   5.05  862   5.05  862   5.05
359.botsspar 44 1003   5.23  1004   5.23  1004   5.23
360.ilbdc 44 587   6.07  616   5.78  593   6.00
362.fma3d 44 598   6.36  585   6.49  577   6.59
363.swim 44 556   8.14  547   8.28  549   8.25
367.imagick 44 712   9.87  712   9.87  712   9.88
370.mgrid331 44 635   6.96  632   6.99  629   7.03
371.applu331 44 775   7.81  796   7.61  779   7.78
372.smithwa 44 451   11.9   449   11.9   452   11.9
376.kdtree 44 694   6.48  695   6.47  696   6.46

Platform Notes

 Sysinfo program /home/huberth/SPEC_OMP2012v1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on r01c2b04 Thu Jul  5 12:31:11 2018

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2680 v3 @ 2.50GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       131612412 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    CentOS Linux release 7.5.1804 (Core)

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.5.1804 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.5 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.5.1804 (Core)
    system-release: CentOS Linux release 7.5.1804 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux r01c2b04 3.10.0-862.3.3.el7.x86_64 #1 SMP Fri Jun 15 04:15:27 UTC 2018
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 5 11:28

 SPEC is set to: /home/huberth/SPEC_OMP2012v1.1
    Filesystem                       Type  Size  Used Avail Use% Mounted on
    /dev/mapper/centos_r01c2b04-root xfs   926G   43G  884G   5% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes


Environment Variables:
    KMP_STACKSIZE=1G
    ulimit -s unlimited

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -ansi-alias   -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

C++ benchmarks:

 -ansi-alias   -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

Fortran benchmarks:

 -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic17-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic17-linux64.xml.
