SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 25.1

Cisco UCS C240 M5 (Intel Xeon Platinum 8280,
2.70 GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: Mar-2019
Test sponsor: Cisco Systems Hardware Availability: Apr-2019
Tested by: Cisco Systems Software Availability: Mar-2019

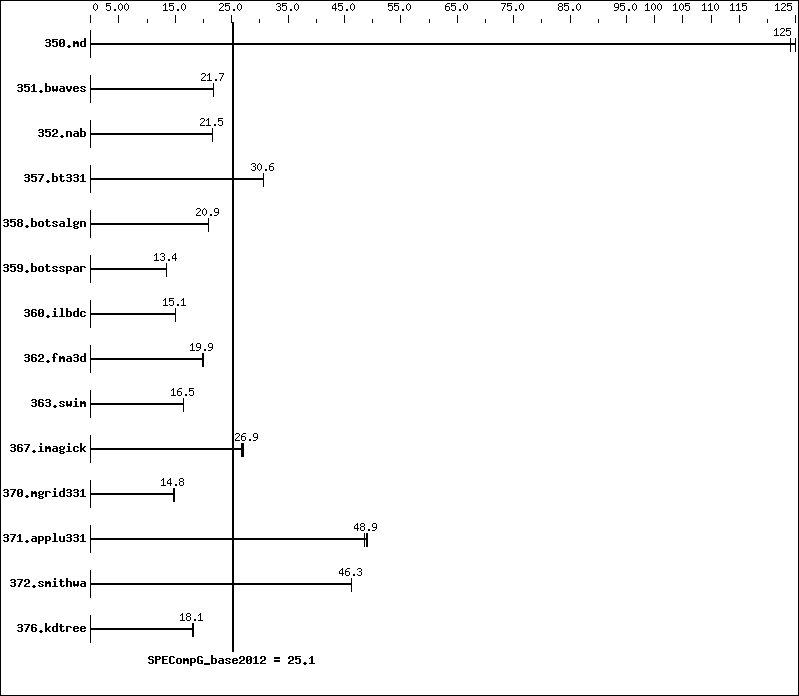

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8280
CPU Characteristics: Intel Turbo Boost Technology up to 4.00 GHz
CPU MHz: 2700
CPU MHz Maximum: 4000
FPU: Integrated
CPU(s) enabled: 56 cores, 2 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (24 x 32 GB 2Rx4 PC4-2933V-R)
Disk Subsystem: 1 X 1.8 TB SAS HDD, 10K RPM
Other Hardware: None
Base Threads Run: 112
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 15 (x86_64)
Compiler: C/C++/Fortran: Version 19.0.1.144 of Intel
Composer for Linux Build 20181018
Auto Parallel: No
File System: xfs
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 112 37.3  124    37.1  125    37.1  125
351.bwaves 112 208    21.7  209    21.7  208    21.7
352.nab 112 181    21.5  180    21.6  181    21.5
357.bt331 112 155    30.6  155    30.6  155    30.6
358.botsalgn 112 208    20.9  208    20.9  208    20.9
359.botsspar 112 393    13.4  393    13.4  393    13.4
360.ilbdc 112 236    15.1  237    15.0  236    15.1
362.fma3d 112 191    19.9  192    19.8  191    19.9
363.swim 112 275    16.5  275    16.5  275    16.5
367.imagick 112 263    26.7  260    27.0  261    26.9
370.mgrid331 112 300    14.8  299    14.8  299    14.8
371.applu331 112 125    48.6  124    48.9  124    49.0
372.smithwa 112 116    46.3  116    46.2  116    46.3
376.kdtree 112 249    18.1  249    18.1  248    18.1

Platform Notes

 Sysinfo program /home/OMP2012/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on linux-3aqe Sun Apr  7 13:07:19 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8280 CPU @ 2.70GHz
       2 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       791189940 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="SLES"
       VERSION="15"
       VERSION_ID="15"
       PRETTY_NAME="SUSE Linux Enterprise Server 15"
       ID="sles"
       ID_LIKE="suse"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:15"

 uname -a:
    Linux linux-3aqe 4.12.14-23-default #1 SMP Tue May 29 21:04:44 UTC 2018
    (cd0437b) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 7 00:47

 SPEC is set to: /home/OMP2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      xfs   1.8T   64G  1.7T   4% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. C240M5.4.0.3.34.0301190218 03/01/2019
   Memory:
    24x 0xCE00 M393A4K40CB2-CVF 32 GB 2 rank 2933 MT/s, configured at 2934 MT/s

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 BIOS settings notes:
   Intel HyperThreading Technology set to Enabled
   CPU performance set to Enterprise
   Power Performance Tuning set to OS
   Sub Numa Clustering (SNC) set to Disabled
   IMC Interleaving set to Auto
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=702M
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1
 ========================================================================
 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

C++ benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

Fortran benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -align array64byte

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19.0-linux64.html,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Intel-ic19.0-linux64.xml,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.xml.
