SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 20.4

Intel Server System R2208WFTZS (2 x Intel Xeon
Platinum 8260L, DDR4-2933, Turbo ON, SMT ON)

SPECompG_peak2012 = 24.6
OMP2012 license: 13 Test date: Mar-2019
Test sponsor: Intel Hardware Availability: Apr-2019
Tested by: Intel Software Availability: Jan-2019

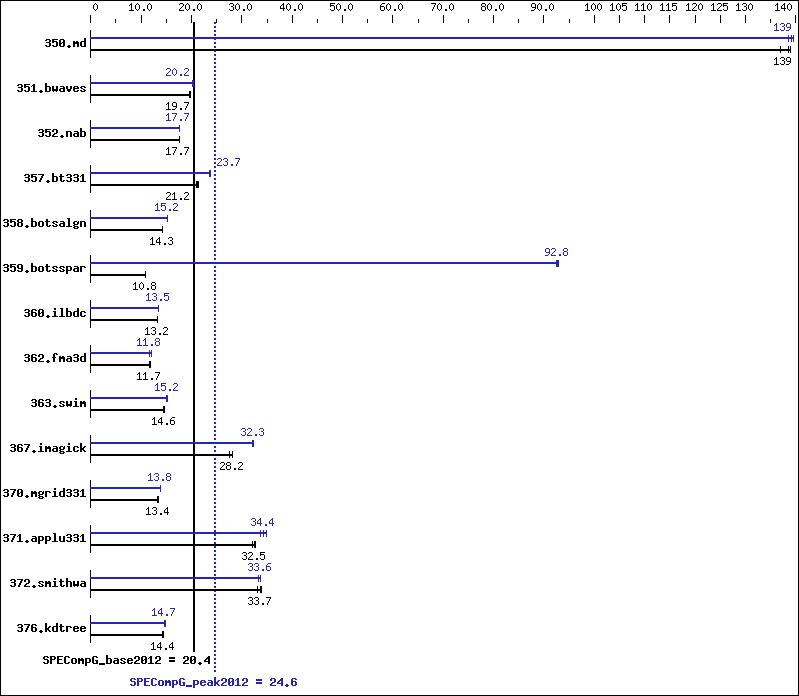

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8260L
CPU Characteristics: Turbo ON, SMT ON
CPU MHz: 2400
CPU MHz Maximum: 3900
FPU: Integrated
CPU(s) enabled: 48 cores, 2 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 35.75 MB I+D on chip per chip
Other Cache: None
Memory: 192 GB (12 x 16 GB 2Rx8 DDR4-2933Y-R)
Disk Subsystem: Panasas ActiveStor 14 (124TB connected via 10GB
Ethernet)
Other Hardware: None
Base Threads Run: 96
Minimum Peak Threads: 48
Maximum Peak Threads: 96
Software
Operating System: Oracle Linux Server release 7.6
Compiler: C/C++/Fortran: Version 19.0.2.187 of Intel
Composer XE for Linux
Auto Parallel: No
File System: PanFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 96 33.3  139    33.4  139    33.8  137    96 33.2  139    33.3  139    33.4  138
351.bwaves 96 232    19.5  229    19.8  230    19.7  48 224    20.2  224    20.2  223    20.4
352.nab 96 220    17.7  220    17.7  220    17.7  96 220    17.7  220    17.7  220    17.7
357.bt331 96 221    21.4  224    21.2  225    21.1  96 200    23.7  200    23.7  201    23.6
358.botsalgn 96 304    14.3  304    14.3  304    14.3  96 286    15.2  286    15.2  286    15.2
359.botsspar 96 484    10.8  483    10.9  485    10.8  48 56.6  92.8  56.8  92.5  56.6  92.8
360.ilbdc 96 270    13.2  269    13.2  269    13.2  96 263    13.5  264    13.5  263    13.5
362.fma3d 96 327    11.6  326    11.7  321    11.8  96 323    11.8  313    12.1  324    11.7
363.swim 96 310    14.6  310    14.6  311    14.5  48 297    15.3  298    15.2  299    15.1
367.imagick 96 249    28.2  256    27.5  250    28.2  48 218    32.3  218    32.3  219    32.1
370.mgrid331 96 331    13.4  331    13.3  331    13.4  48 321    13.8  321    13.8  321    13.8
371.applu331 96 188    32.2  186    32.5  185    32.8  96 174    34.9  176    34.4  180    33.7
372.smithwa 96 158    33.9  159    33.7  161    33.2  96 159    33.6  159    33.8  161    33.3
376.kdtree 96 313    14.4  315    14.3  310    14.5  96 306    14.7  306    14.7  304    14.8

Platform Notes

 Sysinfo program /global/panfs02/innl/aknyaze1/OMP2012/1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on epb015 Mon Mar 18 00:32:01 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8260L CPU @ 2.40GHz
       2 "physical id"s (chips)
       96 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
       physical 1: cores 0 1 2 3 4 5 6 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
    cache size : 36608 KB

 From /proc/meminfo
    MemTotal:       196678424 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    oracle-release: Oracle Linux Server release 7.6
    os-release:
       NAME="Oracle Linux Server"
       VERSION="7.6"
       ID="ol"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.6"
       PRETTY_NAME="Oracle Linux Server 7.6"
       ANSI_COLOR="0;31"
    redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release: Oracle Linux Server release 7.6
    system-release-cpe: cpe:/o:oracle:linux:7:6:server

 uname -a:
    Linux epb015 3.10.0-957.5.1.el7.crt1.x86_64 #1 SMP Fri Feb 1 14:04:43 MST
    2019 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 16 04:33

 SPEC is set to: /global/panfs02/innl/aknyaze1/OMP2012/1.1
    Filesystem                Type   Size  Used Avail Use% Mounted on
    panfs://36.101.212.1/innl panfs  269T  199T   71T  74% /global/panfs02/innl
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

Submitted_by: "Knyazev, Alexander" <Alexander.Knyazev@intel.com>
Submitted: Tue Mar 26 09:42:41 EDT 2019
Submission: omp2012-20190326-00176.sub
 ========================================================================
 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0
358.botsalgn:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo
372.smithwa:  Same as 352.nab

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=1

Fortran benchmarks:

350.md:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all
351.bwaves:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=2   -align all
357.bt331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=1   -align all
360.ilbdc:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=4   -align all
362.fma3d:  Same as 350.md
363.swim:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
370.mgrid331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
371.applu331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -align all

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.xml.

SPEC is a registered trademark of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2012-2019 Standard Performance Evaluation Corporation
Tested with SPEC OMP2012 v1.1.
Report generated on Wed Apr 10 14:05:37 2019 by SPEC OMP2012 HTML formatter v541.
Originally published on 10 April 2019.
