SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 22.8

Intel Server System R2208WFTZS (2 x Intel Xeon
Platinum 8280L, DDR4-2933, Turbo ON, SMT ON)

SPECompG_peak2012 = 28.0

OMP2012 license: 13 Test date: Mar-2019
Test sponsor: Intel Hardware Availability: Apr-2019
Tested by: Intel Software Availability: Jan-2019

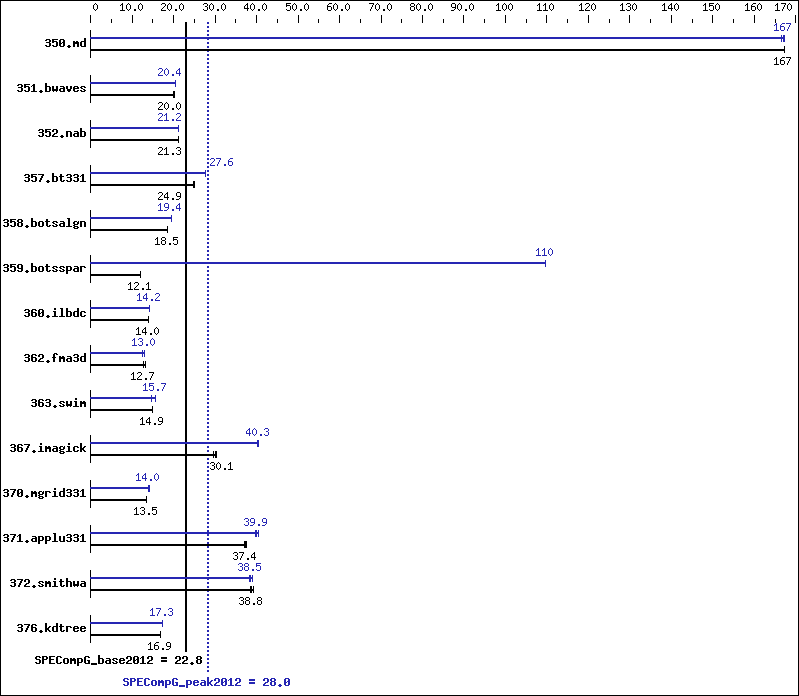

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8280L
CPU Characteristics: Turbo ON, SMT ON
CPU MHz: 2700
CPU MHz Maximum: 4000
FPU: Integrated
CPU(s) enabled: 56 cores, 2 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 192 GB (12 x 16 GB 2Rx8 DDR4-2933Y-R)
Disk Subsystem: Panasas ActiveStor 14 (124TB connected via 10GB
Ethernet)
Other Hardware: None
Base Threads Run: 112
Minimum Peak Threads: 56
Maximum Peak Threads: 112
Software
Operating System: Oracle Linux Server release 7.6
Compiler: C/C++/Fortran: Version 19.0.2.187 of Intel
Composer XE for Linux
Auto Parallel: No
File System: PanFS
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 112 27.7  167    27.7  167    27.7  167    112 27.7  167    27.8  166    27.7  167
351.bwaves 112 226    20.0  225    20.1  227    20.0  56 221    20.5  222    20.4  222    20.4
352.nab 112 183    21.3  183    21.3  183    21.3  112 183    21.2  183    21.2  184    21.2
357.bt331 112 192    24.7  190    25.0  190    24.9  112 172    27.6  172    27.6  172    27.6
358.botsalgn 112 235    18.5  235    18.5  235    18.5  112 224    19.4  224    19.4  224    19.4
359.botsspar 112 435    12.1  435    12.1  434    12.1  56 47.9  110    47.8  110    47.9  110
360.ilbdc 112 255    14.0  254    14.0  254    14.0  112 250    14.3  250    14.2  250    14.2
362.fma3d 112 298    12.7  285    13.3  301    12.6  112 307    12.4  293    13.0  292    13.0
363.swim 112 303    14.9  303    14.9  304    14.9  56 307    14.8  289    15.7  289    15.7
367.imagick 112 238    29.5  231    30.4  234    30.1  56 174    40.3  174    40.5  175    40.3
370.mgrid331 112 327    13.5  327    13.5  327    13.5  56 314    14.1  315    14.0  315    14.0
371.applu331 112 161    37.6  164    37.0  162    37.4  112 152    39.8  150    40.5  152    39.9
372.smithwa 112 137    39.2  139    38.5  138    38.8  112 139    38.5  138    39.0  140    38.3
376.kdtree 112 267    16.8  267    16.9  266    16.9  112 260    17.3  261    17.3  260    17.3

Platform Notes

 Sysinfo program /global/panfs02/innl/aknyaze1/OMP2012/1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on elc02 Tue Mar 26 20:16:21 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8280L CPU @ 2.70GHz
       2 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       196689540 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    oracle-release: Oracle Linux Server release 7.6
    os-release:
       NAME="Oracle Linux Server"
       VERSION="7.6"
       ID="ol"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.6"
       PRETTY_NAME="Oracle Linux Server 7.6"
       ANSI_COLOR="0;31"
    redhat-release: Red Hat Enterprise Linux Server release 7.6 (Maipo)
    system-release: Oracle Linux Server release 7.6
    system-release-cpe: cpe:/o:oracle:linux:7:6:server

 uname -a:
    Linux elc02 3.10.0-957.5.1.el7.crt1.x86_64 #1 SMP Fri Feb 1 14:04:43 MST 2019
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 25 16:12

 SPEC is set to: /global/panfs02/innl/aknyaze1/OMP2012/1.1
    Filesystem                Type   Size  Used Avail Use% Mounted on
    panfs://36.101.212.1/innl panfs  269T  200T   70T  75% /global/panfs02/innl
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static
 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0
358.botsalgn:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo
372.smithwa:  Same as 352.nab

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=1

Fortran benchmarks:

350.md:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all
351.bwaves:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=2   -align all
357.bt331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=1   -align all
360.ilbdc:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=4   -align all
362.fma3d:  Same as 350.md
363.swim:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
370.mgrid331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
371.applu331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -align all

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.xml.
