| CPU2006 license: | 872 | Test date: | May-2007 |
|---|---|---|---|
| Test sponsor: | HITACHI | Hardware Availability: | Sep-2006 |
| Tested by: | HITACHI | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB(8 x 2 GB PC2-4200F) |
| Disk Subsystem: | 1 x 73GB 10000rpm SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 R2, Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build 20061103Z Intel Fortran Compiler for IA32 version 9.1 Build 20061103Z Microsoft Visual Studio .NET 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

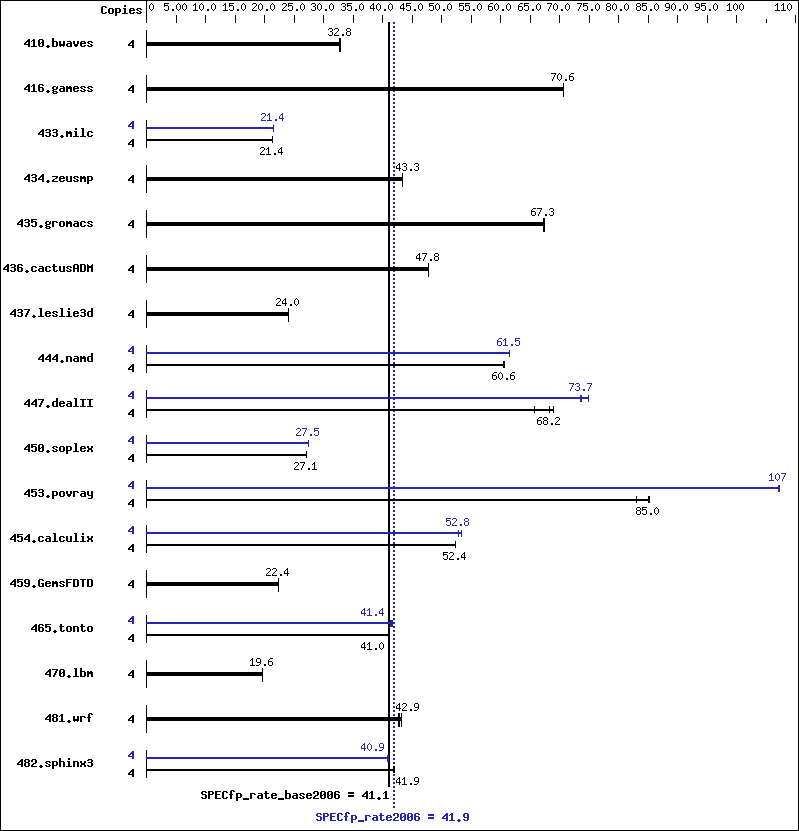

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1665 | 32.7 | 1652 | 32.9 | 1655 | 32.8 | 4 | 1665 | 32.7 | 1652 | 32.9 | 1655 | 32.8 |
| 416.gamess | 4 | 1109 | 70.6 | 1109 | 70.6 | 1110 | 70.6 | 4 | 1109 | 70.6 | 1109 | 70.6 | 1110 | 70.6 |
| 433.milc | 4 | 1714 | 21.4 | 1715 | 21.4 | 1716 | 21.4 | 4 | 1711 | 21.5 | 1712 | 21.4 | 1713 | 21.4 |
| 434.zeusmp | 4 | 840 | 43.3 | 841 | 43.3 | 838 | 43.4 | 4 | 840 | 43.3 | 841 | 43.3 | 838 | 43.4 |
| 435.gromacs | 4 | 424 | 67.3 | 423 | 67.5 | 424 | 67.3 | 4 | 424 | 67.3 | 423 | 67.5 | 424 | 67.3 |
| 436.cactusADM | 4 | 999 | 47.8 | 999 | 47.8 | 999 | 47.8 | 4 | 999 | 47.8 | 999 | 47.8 | 999 | 47.8 |
| 437.leslie3d | 4 | 1564 | 24.0 | 1564 | 24.0 | 1565 | 24.0 | 4 | 1564 | 24.0 | 1564 | 24.0 | 1565 | 24.0 |
| 444.namd | 4 | 530 | 60.6 | 530 | 60.5 | 530 | 60.6 | 4 | 522 | 61.5 | 522 | 61.5 | 522 | 61.5 |
| 447.dealII | 4 | 696 | 65.7 | 663 | 69.0 | 671 | 68.2 | 4 | 611 | 74.9 | 621 | 73.7 | 622 | 73.6 |
| 450.soplex | 4 | 1229 | 27.1 | 1229 | 27.1 | 1230 | 27.1 | 4 | 1213 | 27.5 | 1214 | 27.5 | 1214 | 27.5 |
| 453.povray | 4 | 250 | 85.2 | 250 | 85.0 | 257 | 82.9 | 4 | 199 | 107 | 199 | 107 | 199 | 107 |
| 454.calculix | 4 | 630 | 52.4 | 631 | 52.3 | 630 | 52.4 | 4 | 625 | 52.8 | 619 | 53.3 | 625 | 52.8 |
| 459.GemsFDTD | 4 | 1899 | 22.4 | 1898 | 22.4 | 1897 | 22.4 | 4 | 1899 | 22.4 | 1898 | 22.4 | 1897 | 22.4 |
| 465.tonto | 4 | 961 | 41.0 | 961 | 41.0 | 959 | 41.0 | 4 | 950 | 41.4 | 952 | 41.3 | 945 | 41.7 |
| 470.lbm | 4 | 2806 | 19.6 | 2807 | 19.6 | 2806 | 19.6 | 4 | 2806 | 19.6 | 2807 | 19.6 | 2806 | 19.6 |
| 481.wrf | 4 | 1036 | 43.1 | 1046 | 42.7 | 1042 | 42.9 | 4 | 1036 | 43.1 | 1046 | 42.7 | 1042 | 42.9 |
| 482.sphinx3 | 4 | 1859 | 41.9 | 1859 | 41.9 | 1859 | 41.9 | 4 | 1905 | 40.9 | 1904 | 41.0 | 1904 | 40.9 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| 433.milc: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | Same as 433.milc |
C++ benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
| 481.wrf: | basepeak = yes |
