| CPU2006 license: | 001176 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5120 |
| CPU Characteristics: | 1.86GHz 1066MHz System Bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | 250GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

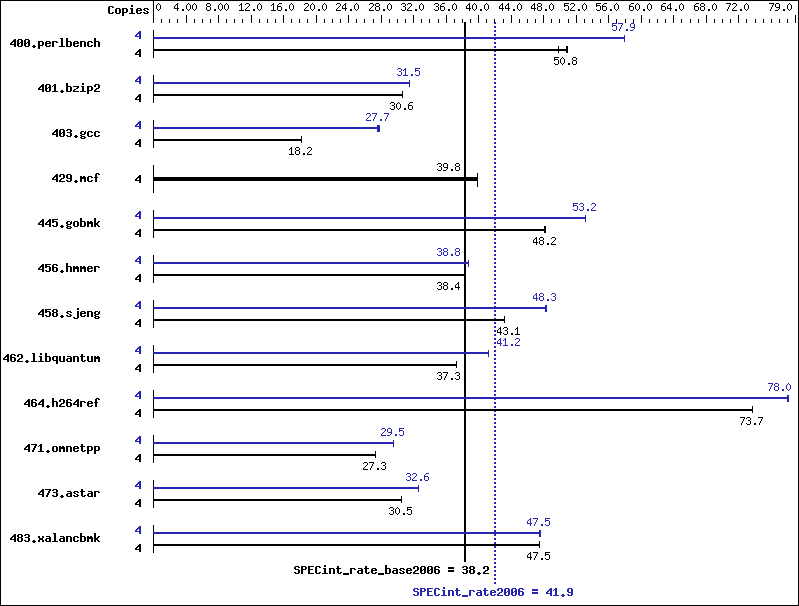

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 785 | 49.8 | 769 | 50.8 | 768 | 50.9 | 4 | 675 | 57.9 | 675 | 57.9 | 674 | 58.0 |
| 401.bzip2 | 4 | 1260 | 30.6 | 1261 | 30.6 | 1259 | 30.7 | 4 | 1224 | 31.5 | 1224 | 31.5 | 1224 | 31.5 |
| 403.gcc | 4 | 1767 | 18.2 | 1769 | 18.2 | 1766 | 18.2 | 4 | 1169 | 27.5 | 1160 | 27.8 | 1162 | 27.7 |
| 429.mcf | 4 | 917 | 39.8 | 917 | 39.8 | 917 | 39.8 | 4 | 917 | 39.8 | 917 | 39.8 | 917 | 39.8 |
| 445.gobmk | 4 | 871 | 48.2 | 871 | 48.2 | 871 | 48.2 | 4 | 789 | 53.2 | 789 | 53.2 | 789 | 53.2 |
| 456.hmmer | 4 | 972 | 38.4 | 972 | 38.4 | 971 | 38.4 | 4 | 962 | 38.8 | 964 | 38.7 | 962 | 38.8 |
| 458.sjeng | 4 | 1122 | 43.1 | 1121 | 43.2 | 1122 | 43.1 | 4 | 1002 | 48.3 | 1003 | 48.3 | 1003 | 48.3 |
| 462.libquantum | 4 | 2223 | 37.3 | 2224 | 37.3 | 2223 | 37.3 | 4 | 2012 | 41.2 | 2012 | 41.2 | 2012 | 41.2 |
| 464.h264ref | 4 | 1201 | 73.7 | 1201 | 73.7 | 1202 | 73.7 | 4 | 1136 | 77.9 | 1135 | 78.0 | 1134 | 78.1 |
| 471.omnetpp | 4 | 914 | 27.3 | 914 | 27.3 | 914 | 27.4 | 4 | 848 | 29.5 | 849 | 29.5 | 848 | 29.5 |
| 473.astar | 4 | 921 | 30.5 | 920 | 30.5 | 921 | 30.5 | 4 | 860 | 32.6 | 861 | 32.6 | 861 | 32.6 |
| 483.xalancbmk | 4 | 582 | 47.5 | 581 | 47.5 | 581 | 47.5 | 4 | 581 | 47.5 | 581 | 47.5 | 581 | 47.5 |
General Notes
Tested systems can be used with CSE-825S2-R700LPV case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB8.cfm The system bus runs at 1066 MHz "start /b /wait /affinity" used to bind processes to CPUs.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
