SPEC® CINT2006 Result

HITACHI

BladeSymphony BS2000 (Intel Xeon X5570)

Hardware
CPU Name:	Intel Xeon X5570
CPU Characteristics:	Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz:	2933
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB(6 x 4 GB PC3-10600R, 2 rank, CL=9)
Disk Subsystem:	1 x 147 GB 10000 rpm SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.3, Advanced Platform, Kernel 2.6.18-128.el5 on an x86_64
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081
Auto Parallel:	Yes
File System:	ext3
System State:	Multi-user run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1

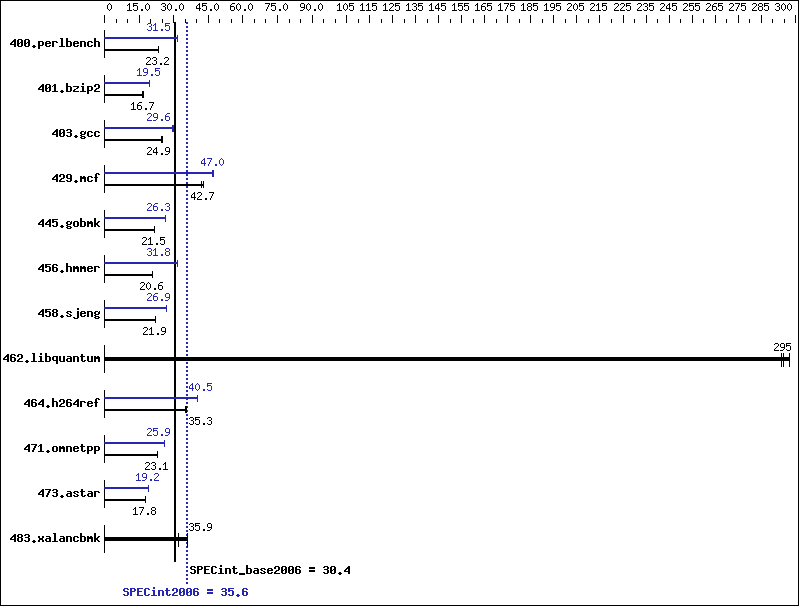

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	422	23.1	422	23.2	420	23.2	310	31.5	310	31.5	311	31.5
401.bzip2	581	16.6	579	16.7	578	16.7	496	19.5	496	19.5	496	19.5
403.gcc	324	24.8	323	24.9	324	24.9	274	29.4	272	29.6	272	29.6
429.mcf	217	42.0	212	43.0	213	42.7	195	46.9	194	47.0	194	47.1
445.gobmk	488	21.5	488	21.5	488	21.5	399	26.3	399	26.3	399	26.3
456.hmmer	453	20.6	452	20.6	453	20.6	294	31.8	294	31.8	294	31.7
458.sjeng	551	22.0	551	21.9	551	21.9	450	26.9	450	26.9	450	26.9
462.libquantum	70.5	294	70.3	295	69.7	297	70.5	294	70.3	295	69.7	297
464.h264ref	628	35.2	627	35.3	621	35.7	547	40.5	547	40.5	548	40.4
471.omnetpp	270	23.1	271	23.1	271	23.1	241	25.9	241	26.0	241	25.9
473.astar	393	17.8	395	17.8	393	17.8	366	19.2	367	19.2	367	19.1
483.xalancbmk	215	32.1	192	36.0	192	35.9	215	32.1	192	36.0	192	35.9

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores
KMP_AFFINITY set to physical,0

BIOS Settings:
 Intel HT Technology = Disabled

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include
456.hmmer:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include
458.sjeng:	/opt/intel/Compiler/11.0/081/bin/intel64/icc -L/opt/intel/Compiler/11.0/081/ipp/em64t/lib -I/opt/intel/Compiler/11.0/081/ipp/em64t/include

icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
