SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X6240 (AMD Opteron 2439 SE 2.8GHz)

SPECfp®2006 = 30.3

CPU2006 license: 6 Test date: Jan-2010
Test sponsor: Sun Microsystems Hardware Availability: Nov-2009
Tested by: Sun Microsystems Software Availability: Oct-2009

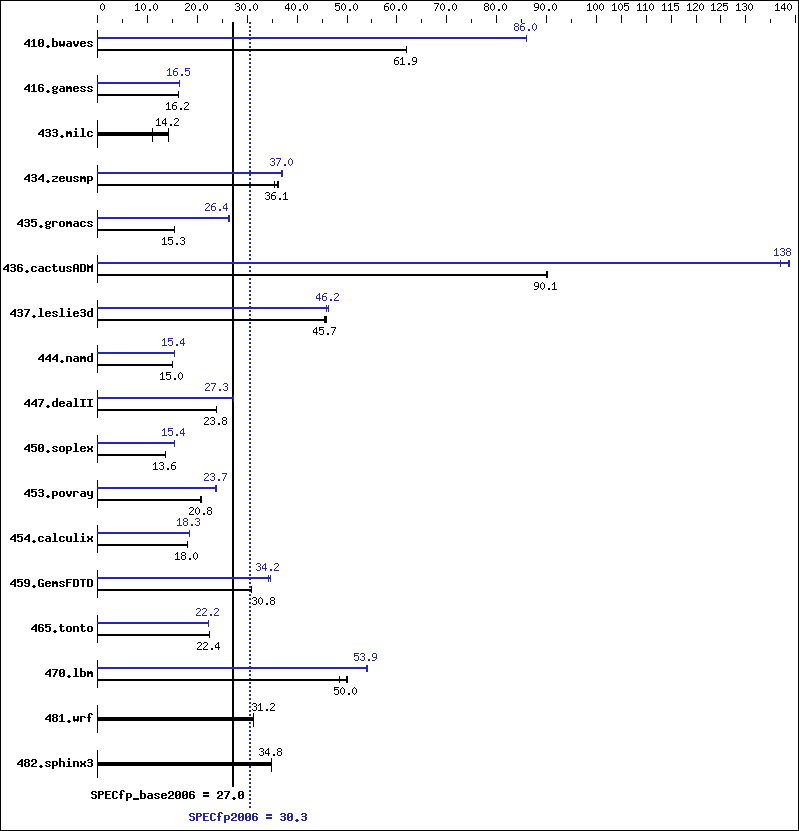

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2439 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1 or 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 146 GB SAS 10 K RPM
Other Hardware: None
Software
Operating System: Solaris 10 10/09
Compiler: Sun Studio 12 Update 1
Auto Parallel: Yes
File System: zfs with gzip compression
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: none

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 220 61.9 220 61.9 220 61.9 158   86.0 158   86.0 158   86.0
416.gamess 1207 16.2 1207 16.2 1207 16.2 1187   16.5 1188   16.5 1188   16.5
433.milc 646 14.2 648 14.2 844 10.9 646   14.2 648   14.2 844   10.9
434.zeusmp 252 36.1 251 36.3 257 35.4 246   37.0 246   37.0 246   37.0
435.gromacs 465 15.3 466 15.3 466 15.3 270   26.4 272   26.3 270   26.4
436.cactusADM 133 90.1 133 90.2 133 89.9 86.3 138   86.1 139   87.3 137
437.leslie3d 206 45.6 205 45.9 206 45.7 203   46.2 204   46.0 203   46.3
444.namd 536 15.0 536 15.0 537 14.9 522   15.4 522   15.4 523   15.3
447.dealII 481 23.8 479 23.9 481 23.8 420   27.3 420   27.2 419   27.3
450.soplex 611 13.6 610 13.7 613 13.6 542   15.4 543   15.4 544   15.3
453.povray 256 20.8 256 20.8 257 20.7 224   23.7 225   23.7 224   23.8
454.calculix 458 18.0 458 18.0 458 18.0 450   18.3 450   18.3 450   18.3
459.GemsFDTD 345 30.8 345 30.8 345 30.8 310   34.2 307   34.6 310   34.2
465.tonto 439 22.4 439 22.4 439 22.4 442   22.3 443   22.2 443   22.2
470.lbm 283 48.6 275 50.0 275 50.0 255   53.9 254   54.1 255   53.9
481.wrf 358 31.2 358 31.2 357 31.3 358   31.2 358   31.2 357   31.3
482.sphinx3 560 34.8 558 34.9 560 34.8 560   34.8 558   34.9 560   34.8

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 export OMP_NUM_THREADS=6
 export SUNW_MP_PROCBIND "0 2 4 6 8 10 1 3 5 7 9 11"
 export SUNW_MP_THR_IDLE=SPIN

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes


   Default BIOS settings used except:
   DCT Unganged Mode set to "Always" to enable Unganged Mode

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "6"
SUNW_MP_PROCBIND = "0 2 4 6 8 10 1 3 5 7 9 11"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=12

C++ benchmarks:

 -verbose=diags,version   -xjobs=12

Fortran benchmarks:

 -V   -v   -xjobs=12

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=12   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

433.milc:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -Qoption iropt -Aparallel:nthreads=12   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=1   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xprefetch=no%auto   -library=stlport4   -xdepend
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=simple   -library=stlport4   -xpagesize=2M

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=1G   -xprefetch=no%auto   -xautopar   -Qoption iropt -Aparallel:nthreads=12   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -Qoption iropt -Aparallel:nthreads=12   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xvector=lib   -xalias   -xdepend   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xpagesize=2M   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=12   -Qoption iropt -Aparallel:nthreads=12
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=12

C++ benchmarks:

 -verbose=diags,version   -xjobs=12

Fortran benchmarks:

 -V   -v   -xjobs=12

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=12   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090818.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090818.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 05:54:13 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 February 2010.
