SPECjbb2005 SPECjbb2005 bops = 2021525, SPECjbb2005 bops/JVM = 126345
Cisco Systems Cisco UCS C460 M1
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1126064
2125844
3127653
4126163
5126297
6125860
7127279
8125237
9126715
10127094
11126258
12124694
13127125
14126853
15126471
16125918
SPECjbb2005 bops = 2021525, SPECjbb2005 bops/JVM = 126345

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS C460 M1
Processor Intel Xeon X7560
MHz 2266
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? yes
Procs Avail to Java 64
Memory (MB) 524288
Memory Details 64 x DDR3-1066 8GB QR RDIMMs
Primary cache 32KB I + 32KB D on chip per core
Secondary cache 256KB I+D on chip per core
Other cache 24MB I+D L3 on chip per chip
Filesystem NTFS
Disks 1 x 73GB 15K RPM SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line java /AFFINITY [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F0000000000000,F00000000000000,F000000000000000,F0000000000000000] -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb-UCS-C460-M1.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\Java\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\Java\jre\lib\annotation.jar;
C:\Program Files\Java\jre\lib\beans.jar;
C:\Program Files\Java\jre\lib\java.util.jar;
C:\Program Files\Java\jre\lib\jndi.jar;
C:\Program Files\Java\jre\lib\logging.jar;
C:\Program Files\Java\jre\lib\security.jar;
C:\Program Files\Java\jre\lib\sql.jar;
C:\Program Files\Java\jre\lib\ibmorb.jar;
C:\Program Files\Java\jre\lib\ibmorbapi.jar;
C:\Program Files\Java\jre\lib\ibmcfw.jar;
C:\Program Files\Java\jre\lib\rt.jar;
C:\Program Files\Java\jre\lib\charsets.jar;
C:\Program Files\Java\jre\lib\resources.jar;
C:\Program Files\Java\jre\lib\ibmpkcs.jar;
C:\Program Files\Java\jre\lib\ibmcertpathfw.jar;
C:\Program Files\Java\jre\lib\ibmjgssfw.jar;
C:\Program Files\Java\jre\lib\ibmjssefw.jar;
C:\Program Files\Java\jre\lib\ibmsaslfw.jar;
C:\Program Files\Java\jre\lib\ibmjcefw.jar;
C:\Program Files\Java\jre\lib\ibmjgssprovider.jar;
C:\Program Files\Java\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\Java\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\Java\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\Java\jre\lib\management-agent.jar;
C:\Program Files\Java\jre\lib\xml.jar;
C:\Program Files\Java\jre\lib\jlm.jar;
C:\Program Files\Java\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2
Other software None
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date Mar 30, 2010
H/w available Apr-2010
JVM available May-2009
OS available Sept-2009
Other s/w available N/A
AOT Compilation

Tuning
Operating system tunings
  • Turned off "Hardware Prefetcher" in BIOS.
  • Turned off "Adjacent Cache Line Prefetch" in BIOS.
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to four cores of a chip.
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

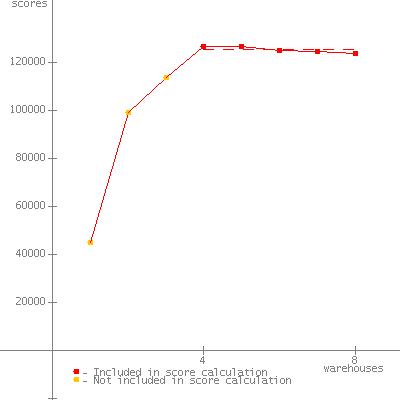

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43486
2 99079
3 115769
4 127510 *
5 126672 *
6 126125 *
7 125109 *
8 124902 *
SPECjbb2005 (from 4 to 8) 126064 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43236
2 100237
3 113781
4 126947 *
5 126929 *
6 125916 *
7 125457 *
8 123970 *
SPECjbb2005 (from 4 to 8) 125844 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45376
2 100601
3 116772
4 129174 *
5 128563 *
6 127715 *
7 126563 *
8 126252 *
SPECjbb2005 (from 4 to 8) 127653 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43504
2 99028
3 111538
4 127918 *
5 127029 *
6 126297 *
7 125071 *
8 124501 *
SPECjbb2005 (from 4 to 8) 126163 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43003
2 99959
3 115943
4 127848 *
5 127371 *
6 125658 *
7 125506 *
8 125100 *
SPECjbb2005 (from 4 to 8) 126297 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 44531
2 99001
3 113737
4 127004 *
5 127114 *
6 126024 *
7 124624 *
8 124535 *
SPECjbb2005 (from 4 to 8) 125860 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 46066
2 100039
3 115346
4 128417 *
5 128449 *
6 127174 *
7 126773 *
8 125581 *
SPECjbb2005 (from 4 to 8) 127279 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45146
2 99145
3 113591
4 126433 *
5 126660 *
6 124893 *
7 124582 *
8 123617 *
SPECjbb2005 (from 4 to 8) 125237 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42365
2 99991
3 114703
4 128842 *
5 127704 *
6 126604 *
7 125657 *
8 124767 *
SPECjbb2005 (from 4 to 8) 126715 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43416
2 100943
3 115741
4 128602 *
5 127915 *
6 126921 *
7 126478 *
8 125554 *
SPECjbb2005 (from 4 to 8) 127094 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41808
2 98781
3 112457
4 128026 *
5 127415 *
6 125782 *
7 125339 *
8 124726 *
SPECjbb2005 (from 4 to 8) 126258 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010

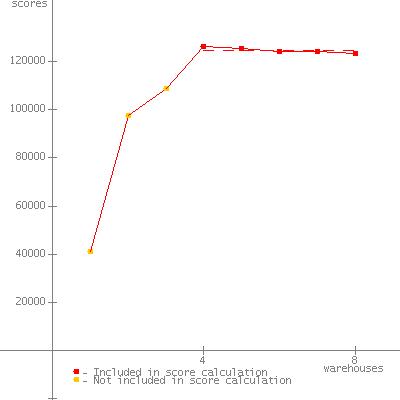

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41091
2 97741
3 108705
4 126380 *
5 125530 *
6 124261 *
7 123965 *
8 123332 *
SPECjbb2005 (from 4 to 8) 124694 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42316
2 100475
3 116075
4 128340 *
5 128080 *
6 127244 *
7 126501 *
8 125461 *
SPECjbb2005 (from 4 to 8) 127125 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42607
2 99220
3 114953
4 128120 *
5 128292 *
6 127241 *
7 126062 *
8 124550 *
SPECjbb2005 (from 4 to 8) 126853 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 45066
2 99226
3 113854
4 127547 *
5 127630 *
6 126492 *
7 125754 *
8 124935 *
SPECjbb2005 (from 4 to 8) 126471 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010


JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 43065
2 99831
3 115730
4 126787 *
5 126822 *
6 125918 *
7 125193 *
8 124869 *
SPECjbb2005 (from 4 to 8) 125918 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: Mar 30, 2010

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 27-Apr-2010
