SPECsfs97_R1.v3 Result

Sun Microsystems :Sun Fire 280R
SPECsfs97_R1.v3 =12304 Ops/Sec (Overall Response Time = 1.79 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
12261.0
24451.3
36711.6
49111.6
61351.9
73332.0
86481.9
98912.4
111452.5
123043.5

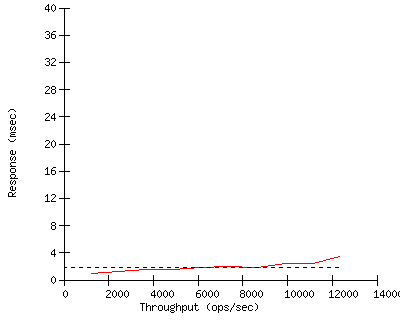

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems
Hardware Available Dec 2001
Software AvailableMay 2002
Date TestedMay 2002
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Sun Fire 280R
Processor 900 MHz UltraSPARC III Cu
# of Processors 2
Primary Cache 32KBI+64KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache none
UPS N/A
Other Hardware N/A
Memory Size 8 GB
NVRAM Size 2.5GB (256MB per Sun StorEdge T3 Controller)
NVRAM Type Sun StorEdge T3 write cache
NVRAM Descriptionauto-sensing WB/WT depending on battery charge

Server Software
OS Name and VersionSolaris 9
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size dynamic
# NFS Processes 1024
Fileset Size 117.0 GB

Network Subsystem
Network Type Sun GigabitEthernet PCI adapter 2.0
Network Controller Desc. Gigabit Ethernet
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Cisco Catalyst 4912G Switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3
Number of Disks 91
Number of Filesystems 10 (F1-F10)
File System Creation OpsDefault
File System Config Striped across 9 disk luns with a 49GB filesystem

Disk Controller On-board FC-AL
# of Controller Type 1
Number of Disks 1
Disk Type Seagate Cheetah 36GB 10K RPM
File Systems on Disks OS, swap
Special Config Notes N/A

Disk Controller Sun cPCI Dual FC-AL Network Adapter (1 Gbit/port)
# of Controller Type 2
Number of Disks 90
Disk Type Seagate Cheetah 18GB 10K RPM
File Systems on Disks F1-5, F6-10
Special Config Notes Filesystems on RAID 0 LUNs (see "Other Notes")

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG20
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Enterprise 420R
Number and Type ProcessorsUltraSPARC II
Memory Size 4GB
Operating System Solaris 8 02/02
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Sun GigabitEthernet PCI adapter 2.0

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,2LG1N1/F1-10, /F1-10N/A


Other Notes


Generated on Fri May 31 14:43:10 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 31-May-2002
