SPECsfs97_R1.v3 Result

Network Appliance, Inc. :F825
SPECsfs97_R1.v3 =8062 Ops/Sec (Overall Response Time = 1.18 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
7920.5
15920.6
23880.7
31990.9
39941.0
48211.2
56481.5
64221.8
72652.2
80622.7

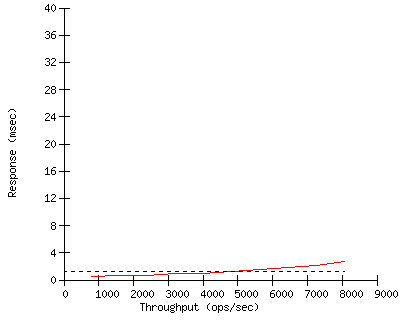

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 2002
Software AvailableAugust 2002
Date TestedAugust 2002
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name F825
Processor 733-MHz Intel Pentium III Coppermine
# of Processors 1 core, 1 chip, 1 core/chip
Primary Cache 16 KB I + 16 KB D
Secondary Cache 256 KB on-die
Other Cache N/A
UPS none
Other Hardware none
Memory Size 1024 MB
NVRAM Size 128 MB
NVRAM Type DIMM on PCI card
NVRAM Descriptionminimum 15-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.3
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 76.4 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025D PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme BlackDiamond 6808 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 50
Number of Filesystems 1
File System Creation Opsdefault
File System Config 6 RAID-groups of 8 disks each

Disk Controller X2050A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 2
Number of Disks 25/25
Disk Type X234B 36GB FC-AL
File Systems on Disks F1/F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 12
Number of Processes per LG2
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../12LG1N1F1N/A


Other Notes


Generated on Thu Apr 14 14:50:01 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 01-Oct-2002
