SPECsfs97_R1.v3 Result

Network Appliance, Inc. :GF960/HDS 9980V (32GB cache)
SPECsfs97_R1.v3 =27023 Ops/Sec (Overall Response Time = 0.82 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
26630.5
53360.5
80530.5
108050.6
135090.7
162410.8
189070.9
217151.1
247311.5
270232.4

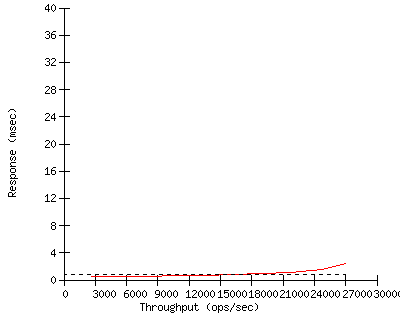

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available April 2003
Software AvailableMay 2003
Date TestedMarch 2003
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name GF960/HDS 9980V (32GB cache)
Processor 2.2-GHz Intel Pentium 4
# of Processors 2 cores, 2 chips, 1 core/chip
Primary Cache 12 K uops I + 8 KB D
Secondary Cache 512 KB on-die
Other Cache N/A
UPS APC Silcon 80KW
Other Hardware none
Memory Size 6GB + 32 GB (see notes)
NVRAM Size 256 MB
NVRAM Type DIMM on PCI card
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.4.1
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size dynamic
# NFS Processes N/A
Fileset Size 256.1 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025D PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme BlackDiamond 6816 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3
Number of Disks 96
Number of Filesystems 1
File System Creation Opsdefault
File System Config 24 RAID-5 groups of 4 disks each

Disk Controller X2050A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 3
Number of Disks 32/32/32
Disk Type DKR2D-J72FC
File Systems on Disks F1/F1/F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 28
Number of Processes per LG2
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../28LG1N1F1N/A


Other Notes


Generated on Thu Apr 14 14:50:01 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 15-Apr-2003
