SPECsfs97_R1.v3 Result

Network Appliance, Inc. :FAS980c Failover Cluster
SPECsfs97_R1.v3 =68139 Ops/Sec (Overall Response Time = 0.98 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
68070.5
135920.5
204410.6
272340.7
342670.8
411571.0
481841.1
549561.3
616371.7
681393.3

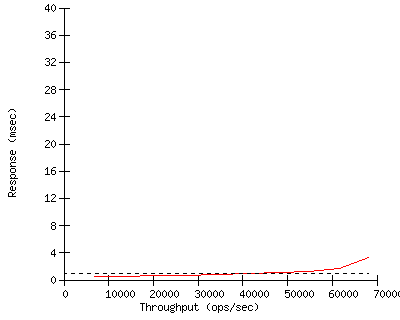

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available January 2004
Software AvailableJanuary 2004
Date TestedNovember 2003
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name FAS980c Failover Cluster
Processor 2.8-GHz Intel Xeon Processor MP
# of Processors 4 cores, 4 chips, 1 core/chip (2 per node) (HT Technology enabled)
Primary Cache 12 K uops I + 8 KB D
Secondary Cache 512 KB on-die
Other Cache 2MB L3 cache, on-die
UPS none
Other Hardware X3150A NVRAM/cluster interconnect adapter (see notes)
Memory Size 16384 MB (8192 MB per node)
NVRAM Size 1024 MB (512 MB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Descriptionminimum 3-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.5
Other Software Cluster Option
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 649.8 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. X1027B PCI adapter card
Number Networks 1 (N1)
Number Network Controllers2 (1 per node)
Protocol Type TCP

Switch Type Extreme BlackDiamond 6816 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 152
Number of Filesystems 2
File System Creation Opsdefault
File System Config 5 RAID-DP (Double Parity) groups of 14 disks each

Disk Controller X2050A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 4
Number of Disks 38/38/38/38
Disk Type X273A 72GB 15K RPM FC-AL
File Systems on Disks F1/F1/F2/F2
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 48
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../48LG1N1F1,F2N/A


Other Notes


Generated on Thu Apr 14 14:50:02 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 10-Dec-2003
