SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :Sun Fire V250
SPECsfs97_R1.v3 =15161 Ops/Sec (Overall Response Time = 1.74 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
15140.9
30641.0
45601.2
61131.4
76361.4
91911.6
107542.0
122682.1
138342.8
151616.8

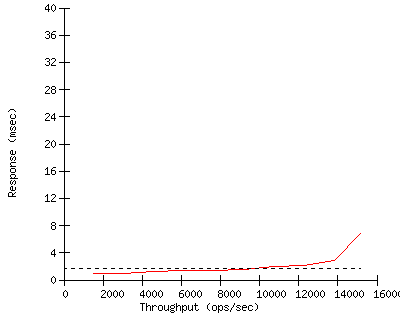

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems, Inc.
Hardware Available October 2003
Software AvailableDecember 2003
Date TestedDecember 2003
SFS License Number6
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name Sun Fire V250
Processor 1.28GHz UltraSPARC IIIi
# of Processors 2
Primary Cache 32KBI + 64KBD on chip
Secondary Cache 1MB on chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 8 GB
NVRAM Size 8 GB (1 GB per Sun StorEdge 6020 RAID Controller)
NVRAM Type Sun StorEdge 6020 write cache
NVRAM Descriptionauto-sensing WB/WT depending on battery charge

Server Software
OS Name and VersionSolaris 9 12/03
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size dynamic
# NFS Processes dynamic, up to a maximum of 1024
Fileset Size 146.0 GB

Network Subsystem
Network Type on-board 10/100/1000-Mbps BaseT
Network Controller Desc. Gigabit Ethernet
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme / Summit 7i (fibre) and Asante GX5-2400 (copper)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3 (1 on-board Ultra 160 SCSI, 2 PCI Dual FC Adptrs)
Number of Disks 113
Number of Filesystems 16 (F1-F16)
File System Creation Opsdefault
File System Config (2) 230GB file systems per 14-disk RAID0 LUN

Disk Controller On-board Ultra160 SCSI
# of Controller Type 1
Number of Disks 1
Disk Type Seagate Cheetah 36GB 10K rpm (ST-336607LW)
File Systems on Disks OS, swap
Special Config Notes N/A

Disk Controller Sun StorEdge 2Gb PCI Dual FC Network Adapter
# of Controller Type 2
Number of Disks 112
Disk Type Seagate Cheetah 36GB 15K rpm (ST-336753FC)
File Systems on Disks F1-8,F9-16
Special Config Notes 4 file systems on 2 RAID 0 LUNs per Sun StorEdge 6120HA Array (see Other Notes)

Load Generator (LG) Configuration
Number of Load Generators 3
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Enterprise 420R
Number and Type Processors4x450MHz UltraSPARC II
Memory Size 4GB
Operating System Solaris 9 8/03
Compiler Forte Developer 7 C 5.4 2002/03/09
Compiler Options -xarch=v9 -DPORTMAP -lm -lsocket -lnsl
Network Type Sun GigabitEthernet PCI adapter 2.0

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,2,3LG1N1/F1-16, /F1-16N/A


Other Notes


Generated on Thu Feb 5 15:24:32 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 05-Feb-2004
