SPECsfs97_R1.v3 Result

EMC Corp. :Celerra NS700 Failover Cluster (one secondary)
SPECsfs97_R1.v3 =36335 Ops/Sec (Overall Response Time = 2.23 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
30180.7
61280.9
91231.1
122351.5
152841.7
183542.0
214562.5
245552.6
276182.9
306863.7
338304.2
363357.1

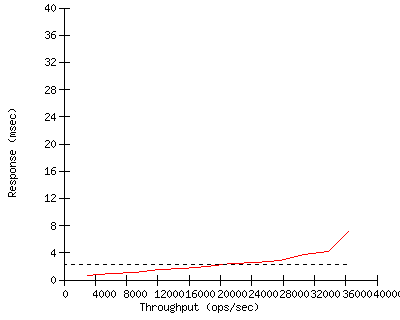

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available February 2004
Software AvailableFebruary 2004
Date TestedFebruary 2004
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra NS700 Failover Cluster (one secondary)
Processor 3.06GHz Intel Xeon P4
# of Processors 2
Primary Cache Execution Trace Cache 12K uOPs + Data Cache 8KB
Secondary Cache 512KB (unified)
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 4 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionDart 5.2
Other Software Redhat Linux 7.2 on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 4
Fileset Size 350.4 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Gigabit Ethernet Controller
Number Networks 1
Number Network Controllers2
Protocol Type TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4 [2 per Storage Processor (SP), 2 SPs]
Number of Disks 131
Number of Filesystems 1
File System Creation OpsN/A
File System Config striped (8KB element size), across 126 disk (42 LUNs)

Disk Controller Integrated 2Gb Fibre Channel
# of Controller Type 4 [2 per SP]
Number of Disks 131 (dual ported)
Disk Type Seagate Fibre Channel 146GB 10k-rpm
File Systems on Disks OS and UxFS Log (5), Filesystem fs1 (126)
Special Config Notes 4GB cache per SP on storage array. 3072 MB mirrored write cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators 7
Number of Processes per LG32
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Dell 2450
Number and Type Processors2x 1G PIII
Memory Size 1 GB
Operating System Linux 2.4.20-24.7 smp
Compiler GCC 2.96
Compiler Options None
Network Type Intel 82543GC GbE

LG Type LG2
LG Model Dell 2450
Number and Type Processors2x 1G PIII
Memory Size 2 GB
Operating System Linux 2.4.20-24.7 smp
Compiler GCC 2.96
Compiler Options None
Network Type Intel 82543GC GbE

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1..6LG11/fs1../fs1N/A
7LG21/fs1../fs1N/A


Other Notes


Generated on Tue Mar 2 16:41:32 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 02-Mar-2004
