SPECsfs97_R1.v3 Result

BlueArc Inc. :Titan 32
SPECsfs97_R1.v3 =101571 Ops/Sec (Overall Response Time = 1.78 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
100220.6
201520.7
301421.0
405131.3
504871.5
606891.8
709902.2
810392.7
914223.4
1015715.1

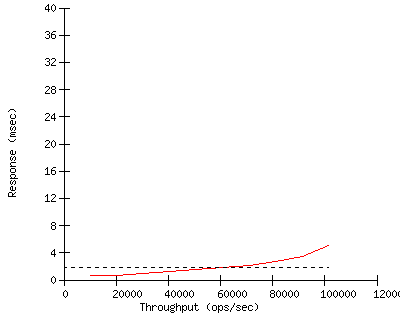

Performance Graph


Configuration

Server Configuration and Availability
Vendor BlueArc Inc.
Hardware Available January 2004
Software AvailableOctober 2004
Date TestedSeptember 2004
SFS License Number000063
Licensee LocationsSanJose, CA

CPU, Memory and Power
Model Name Titan 32
Processor 1264 MHz MPC 7457B + FPGAs (CPU manufacturer is Freescale/Motorola) - see notes on FPGA's
# of Processors 2 cores, 2 chips, 1 core/chip (1 core, 1 chip per node with 14 FPGAs)
Primary Cache 32KBI + 32KBD on chip
Secondary Cache 512KB(I+D) on chip
Other Cache 17.5 GB (8.75 GB per node) - see notes
UPS N/A
Other Hardware System Management Unit (SMU) - see notes, Dual Brocade 3850 FC switches
Memory Size 28 GB (14 GB per node)
NVRAM Size 2 GB (1 GB per node)
NVRAM Type DIMM
NVRAM Description72 hour battery

Server Software
OS Name and VersionSU 3.3.759a
Other Software N/A
File System Silicon FileSystem v5
NFS version 3

Server Tuning
Buffer Cache Size N/A
# NFS Processes N/A
Fileset Size 966.9 GB

Network Subsystem
Network Type Integrated
Network Controller Desc. Quad port 1Gbps Ethernet
Number Networks 1 (N1)
Number Network Controllers2 (1 per node)
Protocol Type TCP

Switch Type Dell 5224 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware separate gigabit Ethernet ports for cluster interconnect - see notes

Disk Subsystem and Filesystems
Number Disk Controllers 2 (1 per node)
Number of Disks 208
Number of Filesystems 2 (F1, F2)
File System Creation Ops4KB block size
File System Config 8 RAID5 LUs of 12+P disks each

Disk Controller Integrated dual port 2Gbps FC
# of Controller Type 2
Number of Disks 104/104
Disk Type Seagate X15 72GB 15K RPM
File Systems on Disks F1, F2
Special Config Notes See notes

Load Generator (LG) Configuration
Number of Load Generators 30
Number of Processes per LG20
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell PowerEdge 1750
Number and Type Processors2x2.8 GHz Xeon
Memory Size 1 GB
Operating System Linux Redhat 8.0
Compiler used SFS97_R1 precompiled binaries
Compiler Options N/A
Network Type Integrated Intel Pro/1000MT

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG11F1, F2N/A
2LG11F1, F2N/A
3LG11F1, F2N/A
4LG11F1, F2N/A
5LG11F1, F2N/A
6LG11F1, F2N/A
7LG11F1, F2N/A
8LG11F1, F2N/A
9LG11F1, F2N/A
10LG11F1, F2N/A
11LG11F1, F2N/A
12LG11F1, F2N/A
13LG11F1, F2N/A
14LG11F1, F2N/A
15LG11F1, F2N/A
16LG11F1, F2N/A
17LG11F1, F2N/A
18LG11F1, F2N/A
19LG11F1, F2N/A
20LG11F1, F2N/A
21LG11F1, F2N/A
22LG11F1, F2N/A
23LG11F1, F2N/A
24LG11F1, F2N/A
25LG11F1, F2N/A
26LG11F1, F2N/A
27LG11F1, F2N/A
28LG11F1, F2N/A
29LG11F1, F2N/A
30LG11F1, F2N/A


Other Notes


Generated on Fri Oct 29 15:46:48 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 28-Sep-2004
