SPECsfs97_R1.v3 Result

Hewlett-Packard :hp ProLiant DL380 G4 Storage Server SAN Storage Model
SPECsfs97_R1.v3 =11394 Ops/Sec (Overall Response Time = 1.66 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
11981.2
24401.6
36771.6
48901.6
61321.8
73461.8
85722.0
98462.1
110562.1
113942.4

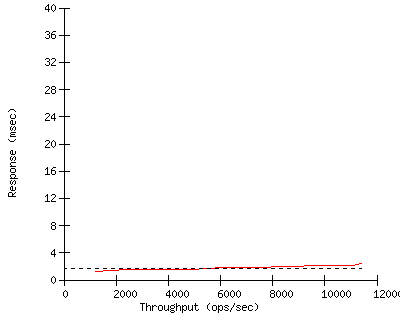

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hewlett-Packard
Hardware Available November 2004
Software AvailableMarch 2005
Date TestedMarch 2005
SFS License Number3
Licensee LocationsRichardson, Texas

CPU, Memory and Power
Model Name hp ProLiant DL380 G4 Storage Server SAN Storage Model
Processor Intel Xeon DP @ 3.4 GHz
# of Processors 2 cores, 2 chips, 1 core/chip (Hyper-Threading Technology enabled)
Primary Cache 12 KB + 8 KB (I + D)
Secondary Cache 1 MB
Other Cache N/A
UPS N/A
Other Hardware 2 hp 8b Fibre Channel Switches
Memory Size 6 GB
NVRAM Size 6GB (2GB/VA7410 *3)
NVRAM Type 3 day battery backed NVRAM
NVRAM DescriptionVA7410 Array controller

Server Software
OS Name and VersionMicrosoft® Windows® Storage Server 2003 Enterprise Edition
Other Software hp ProLiant Storage Server Service Release 5.4
File System NTFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 64
Fileset Size 116.0 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. NC7782 Dual Port PCI-X Gigabit Server Adapter (embedded)
Number Networks 2
Number Network Controllers2
Protocol Type UDP

Switch Type ExtremeNetworks Summit 7i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3
Number of Disks 128
Number of Filesystems 7
File System Creation Ops/q /fs:ntfs /v: /a:16k /x
File System Config chkdsk /l:65536

Disk Controller Integrated Ultra320 Smart Array 6i Controller with 128MB Battery-Backed Write Cache (BBWC)
# of Controller Type 1
Number of Disks 2
Disk Type 36GB, 15000 rpm Ultra320 SCSI
File Systems on Disks os, pagefile
Special Config Notes Configured in RAID1

Disk Controller Fibre Channel FCA2404
# of Controller Type 2
Number of Disks 63/63
Disk Type 18GB, 15000 rpm (A6191A)
File Systems on Disks F1,F3,F5 / F2,F4,F6
Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators 4
Number of Processes per LG6
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model HP NetServer LT6000r
Number and Type Processors2x Pentium III Xeon @ 700 MHz\1MB
Memory Size 1 GB
Operating System Linux 2.4.20-24.9smp (RedHat 9.0)
Compiler gcc 3.2.2 20030222
Compiler Options Default
Network Type Intel PRO/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2LG1N1F1-F62 clients/net
3/4LG1N2F1-F62 clients/net


Other Notes


Generated on Mon Apr 3 18:22:06 2006 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 31-Mar-2005
