SPECsfs97_R1.v3 Result

Network Appliance, Inc. :FAS3020c
SPECsfs97_R1.v3 =34089 Ops/Sec (Overall Response Time = 1.77 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
33320.5
67530.6
100840.8
134100.9
168911.1
203481.6
237042.1
270102.7
305633.9
339226.5
340896.6

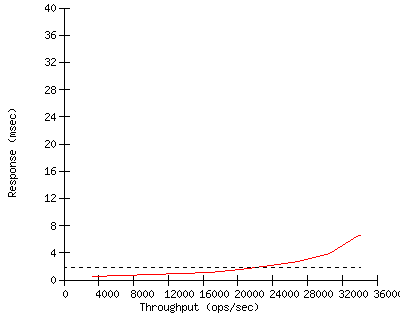

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available May 2005
Software AvailableMay 2005
Date TestedMay 2005
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name FAS3020c
Processor 2.8-GHz Intel Xeon Processor
# of Processors 2 cores, 2 chips, 1 core/chip (HT enabled)
Primary Cache 12 K uops I + 8 KB D
Secondary Cache 512 KB on-die
Other Cache N/A
UPS none
Other Hardware X3154A NVRAM/cluster interconnect adapter (see notes)
Memory Size 4096 MB (2048 MB per node)
NVRAM Size 1024 MB (512 MB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 7.0.1R1
Other Software Cluster Option
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 324.9 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. integrated Intel 82546 10/100/1000 Ethernet
Number Networks 1 (N1)
Number Network Controllers2 (1 per node)
Protocol Type TCP

Switch Type Cisco 6509 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2 (1 per node)
Number of Disks 164
Number of Filesystems 2
File System Creation Opsdefault
File System Config 5 RAID-DP (Double Parity) groups of 16 disks each

Disk Controller integrated dual-channel QLogic ISP-2322 FC Controller (4MB RAM standard)
# of Controller Type 2
Number of Disks 84/84
Disk Type X273A 72GB 15K RPM FC-AL
File Systems on Disks F1/F2
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 40
Number of Processes per LG6
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../40LG1N1F1,F2N/A


Other Notes


Generated on Tue Jun 7 15:01:23 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 07-Jun-2005
