SPECsfs97_R1.v3 Result

ONStor, Inc. :ONStor Bobcat 2220 NAS Gateway / 3PAR InServ S800 Storage Server
SPECsfs97_R1.v3 =10120 Ops/Sec (Overall Response Time = 1.35 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
9920.7
20040.9
30361.0
40441.2
50291.2
60501.3
70861.5
81021.7
91252.3
101203.4

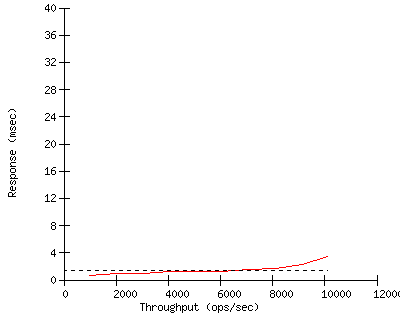

Performance Graph


Configuration

Server Configuration and Availability
Vendor ONStor, Inc.
Hardware Available Jun 2005
Software AvailableJun 2005
Date TestedJul 2005
SFS License Number2192
Licensee LocationsLos Gatos, CA, USA

CPU, Memory and Power
Model Name ONStor Bobcat 2220 NAS Gateway / 3PAR InServ S800 Storage Server
Processor 750 Mhz Broadcom BCM1250
# of Processors 4 cores, 2 chips, 2 cores/chip
Primary Cache 32 KB I + 32 KB D on chip
Secondary Cache 512 KB (I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware McData Sphereon 4500
Memory Size 2 GB (filer) + 20 GB (3PAR InServ) (see notes)
NVRAM Size 0
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionEverON 1.2.3
Other Software 3PAR InForm OS 2.2
File System STOR-FS
NFS version 3

Server Tuning
Buffer Cache Size dynamic
# NFS Processes N/A
Fileset Size 96.7 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. custom (see notes)
Number Networks 1
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme networks - Summit 7i - model 11704
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 120
Number of Filesystems 16
File System Creation OpsN/A
File System Config TPVV striped across 60 disks (see notes)

Disk Controller 1 FC controller with 2 ports
# of Controller Type 1
Number of Disks 120
Disk Type 147 GB 10 K RPM - FC disks
File Systems on Disks vol1-vol8 and vol101-vol108
Special Config Notes N/A

Load Generator (LG) Configuration
Number of Load Generators 4
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell PowerEdge 1850
Number and Type ProcessorsIntel(R) dual Xeon(TM) CPU 3.00GHz
Memory Size 2GB
Operating System Red Hat Enterprise Linux ES release 4
Compiler pre-compiled binary
Compiler Options N/A
Network Type 1 Gigabit Eth interface

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1-4LG11/vol1, /vol2, /vol3, /vol4, /vol5, /vol6, /vol7, /vol8, /vol101, /vol102, /vol103, /vol104, /vol105, /vol106, /vol107, /vol108,N/A


Other Notes


Generated on Mon Aug 29 15:43:18 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 29-Aug-2005
