SPECsfs97_R1.v3 Result

Exanet Inc. :ExaStore EX200FC (High Performance Cluster)
SPECsfs97_R1.v3 =143880 Ops/Sec (Overall Response Time = 1.47 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
137650.6
273930.8
411511.0
551141.1
688741.3
827601.6
965771.7
1104811.9
1243272.5
1386712.9
1413823.2
1438803.5

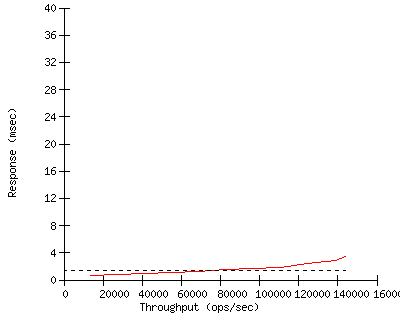

Performance Graph


Configuration

Server Configuration and Availability
Vendor Exanet Inc.
Hardware Available Nov 2005
Software AvailableSep 2005
Date TestedDec 2005
SFS License Number211
Licensee LocationsHertzlia, Israel

CPU, Memory and Power
Model Name ExaStore EX200FC (High Performance Cluster)
Processor Intel(R) Xeon MP(TM) CPU 3.66GHz
# of Processors 8 cores, 8 chips, 1 core/chip (4 cores per node)
Primary Cache 8 KBD on chip
Secondary Cache 1024KB(I+D) on chip
Other Cache N/A
UPS APC SmartUPS 1500 2U
Other Hardware None
Memory Size 48 GB (24 GB per node)
NVRAM Size 52 GB (all node memory is UPS protected, and 4 GB in the 6998 Storage System)
NVRAM Type Node: UPS-protected DRAM, Storage Controller: Battery-backed RAM
NVRAM DescriptionSee notes

Server Software
OS Name and VersionExaOS V2.2
Other Software N/A
File System ExaFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 16 (8 per node)
Fileset Size 1373.2 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet (MTU 9000)
Network Controller Desc. Intel(R) PRO/1000 MT Quad Port Server Adapter
Number Networks 2 (N1 - Server, N2 - Cluster)
Number Network Controllers4 (2 per node: 4 ports server, 4 ports cluster)
Protocol Type UDP

Switch Type Nortel Baystack 5510 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2 (1 per node)
Number of Disks 148
Number of Filesystems 1 (F1)
File System Creation Opsdefault
File System Config 12 RAID-Groups of 12 disks each

Disk Controller IBM ServeRAID 8i SAS controller
# of Controller Type 1 (per node)
Number of Disks 2 (per node)
Disk Type Hitachi 36 GB 10K RPM
File Systems on Disks OS, write cache dump files
Special Config Notes N/A

Disk Controller Fibre Channel: QLogic Corp. QLA2342 Dual Port Fibre Channel Adapter
# of Controller Type 4
Number of Disks 144
Disk Type Seagate Cheetah ST 373453 FC 73GB 15K RPM
File Systems on Disks F1
Special Config Notes See notes

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model SuperServer 5013C-T
Number and Type Processors1x3.0 GHz Pentium 4, 1MB cache
Memory Size 2048 MB
Operating System Linux 2.4
Compiler gcc 3.2
Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES -DLinux
Network Type Intel e1000 Gigabit Ethernet, MTU = 9000

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../16LG1N1F1N/A


Other Notes


Generated on Fri Feb 3 10:42:58 2006 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 01-Feb-2006
