SPECsfs97_R1.v3 Result

Montilio Inc. :HP ProLiant DL380 G4 with RapidFile FCX2400
SPECsfs97_R1.v3 =47586 Ops/Sec (Overall Response Time = 1.34 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
48410.6
97020.8
145760.9
194811.1
243791.2
292431.4
342041.7
391112.0
441062.4
475863.3

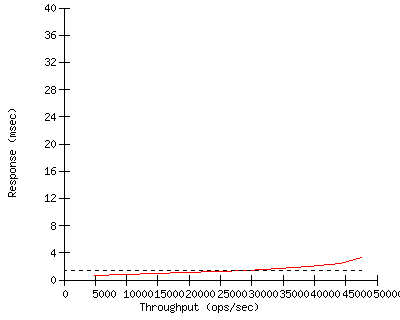

Performance Graph


Configuration

Server Configuration and Availability
Vendor Montilio Inc.
Hardware Available March 2006
Software AvailableMarch 2006
Date TestedMarch 2006
SFS License Number2762
Licensee LocationsUSA

CPU, Memory and Power
Model Name HP ProLiant DL380 G4 with RapidFile FCX2400
Processor Intel Xeon @ 3.00GHz
# of Processors 2 cores, 2 chips, 1 core/chip (Hyper-Threading Technology enabled) +1 FPGA onboard RapidFile HBA
Primary Cache 12 KB + 8 KB (I + D)
Secondary Cache 1 MB
Other Cache 256 MB on RapidFile FCX2400
UPS N/A
Other Hardware N/A
Memory Size 8 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionSuSe SLES9 x86_64, no service pack.
Other Software RapidFile NFS server
File System Ext2 (F1-F12), ReiserFS (os)
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 192
Fileset Size 464.2 GB

Network Subsystem
Network Type RapidFile FCX2400
Network Controller Desc. RapidFile FCX2400 with 2 ports 1Gbps each
Number Networks 2 (N1-N2)
Number Network Controllers1
Protocol Type TCP

Switch Type 2 NetGear 16 port Model GS516T
Bridge Type N/A
Hub Type N/A
Other Network Hardware Bay Networks 24 port Model BayStack 450-24T switch (used for management)

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 91
Number of Filesystems 13 (F1-F12, os)
File System Creation Opsdefault
File System Config default

Disk Controller Compaq Computer Corporation Smart Array 64xx (rev 01)
# of Controller Type 1
Number of Disks 1
Disk Type 72.8 GB, 10000 rpm Ultra320 SCSI
File Systems on Disks os, pagefile
Special Config Notes N/A

Disk Controller RapidFile FCX2400
# of Controller Type 1 controller with 2 FC ports 2Gbps each
Number of Disks 90
Disk Type Seagate Cheetah 36 GB 15K RPM
File Systems on Disks F1-F6, F7-F12
Special Config Notes 2GB cache per SP on storage arrays. 747 MB mirrored write + 725 MB read cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators 6
Number of Processes per LG24
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IntelEntry Server Platform SR1325TP1-E
Number and Type ProcessorsIntel(R) Celeron(R) CPU 2.40GHz
Memory Size 512 MB
Operating System Fedora Core release 4 (Stentz)
Compiler gcc (GCC) 4.0.0 20050519 (Red Hat 4.0.0-8)
Compiler Options Default
Network Type Intel Pro 100, Intel 82547GI Gigabit Ethernet Controller

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A
2LG1N2F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A
3LG1N1F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A
4LG1N2F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A
5LG1N1F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A
6LG1N2F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12, F1, F7, F2, F8, F3, F9, F4, F10, F5, F11, F6, F12N/A


Other Notes


Generated on Fri Apr 7 16:12:46 2006 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 29-Mar-2006
