SPECsfs97_R1.v3 Result

Network Appliance, Inc. :Data ONTAP GX System (24-node FAS6070)
SPECsfs97_R1.v3 =1032461 Ops/Sec (Overall Response Time = 1.53 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
1010950.7
2006230.8
3036700.9
4046991.1
5074551.3
6099331.5
7122891.7
8146632.0
9210992.7
10324614.6

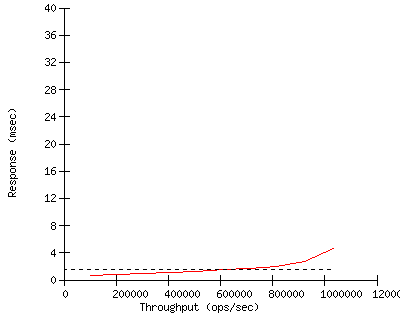

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available March 2006
Software AvailableSeptember 2006
Date TestedMay 2006
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name Data ONTAP GX System (24-node FAS6070)
Processor 2.6-GHz AMD Opteron(tm) 852
# of Processors 96 cores, 96 chips, 1 core/chip
Primary Cache 64KB I + 64KB D on chip
Secondary Cache 1MB (I+D) on chip
Other Cache N/A
UPS none
Other Hardware X3148-R5 NVRAM/HA interconnect adapter (see notes)
Memory Size 768 GB (32 GB per node)
NVRAM Size 48 GB (2 GB per node)
NVRAM Type DIMMs on PCI cards
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP GX 10.0.1
Other Software --
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 1477.0 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. integrated 10/100/1000 Ethernet controller
Number Networks 2 (N1-data, N2-cluster)
Number Network Controllers72 (1 data and 2 cluster per node)
Protocol Type TCP

Switch Type Cisco 7609 (N1,N2)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 48 (2 per node)
Number of Disks 2016
Number of Filesystems single namespace (see notes)
File System Creation Opsdefault
File System Config 120 RAID-DP (Double Parity) groups of 16 disks each

Disk Controller integrated dual-channel QLogic ISP-2322 FC Controller (4MB RAM standard)
# of Controller Type 48 (2 per node)
Number of Disks 42/42/42/.../42
Disk Type X273B 72GB 15K RPM FC-AL
File Systems on Disks F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 216
Number of Processes per LG24
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM HS20 884325U
Number and Type Processors2 x 3.2-GHz Intel Xeon
Memory Size 2048 MB
Operating System Red Hat Enterprise Linux AS release 4 (2.6.9-5.ELsmp)
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Integrated Dual Channel Broadcom Gigabit Ethernet

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../216LG1N1F1N/A


Other Notes


Generated on Sun Jun 11 23:01:18 2006 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 06-Jun-2006
