Fujitsu Siemens Computers PRIMERGY RX300 S3 (Intel Xeon L5335) SPECpower_ssj2008 = 446 overall ssj_ops/watt
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, Germany Test Date: Nov 26, 2007
Hardware Availability: Sep-2007 Software Availability: Nov-2007 Publication: Dec 11, 2007
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.1% 201,689 260 776
90% 89.9% 183,027 256 716
80% 80.3% 163,381 250 653
70% 70.8% 144,116 245 588
60% 60.0% 122,114 238 513
50% 49.8% 101,408 231 439
40% 40.1% 81,694 224 365
30% 29.7% 60,513 215 281
20% 20.2% 41,040 207 198
10% 9.9% 20,240 197 103
Active Idle 0 187 0
∑ssj_ops / ∑power = 446

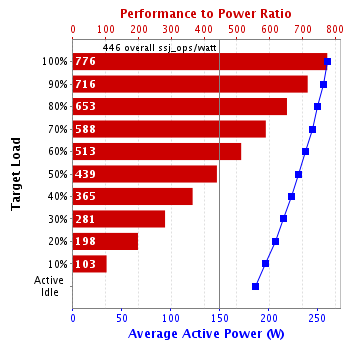

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX300 S3 (Intel Xeon L5335)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX300 S3 (Intel Xeon L5335)
Form Factor: --
CPU Name: Intel Xeon L5335
CPU Characteristics: 2.0 GHz, 2x4 MB L2C shared, 1333 MHz system bus
CPU Frequency (MHz): 2000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4x4096MB
Memory Details: PC2-5300F 2Rx4 (CAS 5-5-5, Samsung)
Power Supply Quantity and Rating (W): 1 x 600
Power Supply Details: Liteon PS-3601-1F
Disk Drive: 1 x Seagate ST3146854SS 146GB 15krpm SAS
Disk Controller: LSI Logic integrated SAS
# and type of Network Interface Cards (NICs) Installed: Broadcom 5715 NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: USB
Monitor: Yes
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Disabled
Operating System (OS): Microsoft(R) Windows(R) Server 2003 Enterprise x64 Edition
OS Version: Version 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-x86_64)
JVM Command-line Options: -Xms3600m -Xns3000m -Xmx3600m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [03,0c,30,c0]
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX100 S3
CPU Description: Intel Pentium D 920
Memory amount (GB): 2
Software
Operating System (OS): Microsoft(R) Windows(R) Server 2003 Enterprise Edition SP1
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.3.1-1-85830-1.6.0_01-20070716-1248-windows-ia32)
CCS Version: 0.21
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Christ-Elektronik GmbH
Model: CLM3000
Serial Number: 200707-0044
Connectivity: RS-232
Input Connection: --
Calibration Institute: PTB (Physikalisch-Technische Bundesanstalt)
Accredited by: DKD (Deutscher Kalibrierdienst)
Calibration Label: 00715-07 DKD-K-23801 07-02
Date of Calibration: Feb-13-07
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 0.21-2f7044de
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 260 21.8
90% 256 21.8
80% 250 21.8
70% 245 21.8
60% 238 21.8
50% 231 21.8
40% 224 21.8
30% 215 21.8
20% 207 21.8
10% 197 21.8
Active Idle 187 21.8
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.8 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,941
Calibration 2     203,781
Calibration 3     203,265
ssj_ops@calibrated=203,523
100% 99.1% 203,523 201,689
90% 89.9% 183,170 183,027
80% 80.3% 162,818 163,381
70% 70.8% 142,466 144,116
60% 60.0% 122,114 122,114
50% 49.8% 101,761 101,408
40% 40.1% 81,409 81,694
30% 29.7% 61,057 60,513
20% 20.2% 40,705 41,040
10% 9.9% 20,352 20,240
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
