SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge 2950 III (Intel Xeon E5440) | SPECpower_ssj2008 = 682 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, Texas, USA | Test Date: | Nov 21, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Oct-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

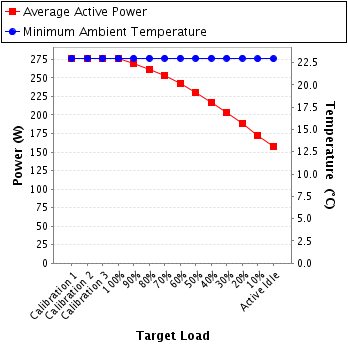

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 276 | 23.0 |
| Calibration 2 | 277 | 23.0 |
| Calibration 3 | 276 | 23.0 |
| 100% | 276 | 23.0 |
| 90% | 270 | 23.0 |
| 80% | 262 | 23.0 |
| 70% | 253 | 23.0 |
| 60% | 243 | 23.0 |
| 50% | 230 | 23.0 |
| 40% | 217 | 23.0 |
| 30% | 204 | 23.0 |
| 20% | 189 | 23.0 |
| 10% | 173 | 22.9 |
| Active Idle | 157 | 22.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G643889 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa |
| Calibration Label: | 07-1458 |
| Date of Calibration: | 24-Oct-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 3.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

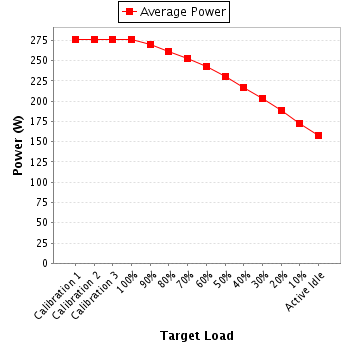

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 118 | -- | 2.38 | -- | 0.980 | 276 | -- |
| Calibration 2 | 118 | -- | 2.38 | -- | 0.980 | 277 | -- |
| Calibration 3 | 118 | -- | 2.38 | -- | 0.980 | 276 | -- |
| 100% | 118 | -- | 2.38 | -- | 0.980 | 276 | -- |
| 90% | 118 | -- | 2.33 | -- | 0.980 | 270 | -- |
| 80% | 118 | -- | 2.26 | -- | 0.978 | 262 | -- |
| 70% | 118 | -- | 2.19 | -- | 0.977 | 253 | -- |
| 60% | 118 | -- | 2.10 | -- | 0.975 | 243 | -- |
| 50% | 119 | -- | 2.00 | -- | 0.973 | 230 | -- |
| 40% | 119 | -- | 1.88 | -- | 0.972 | 217 | -- |
| 30% | 118 | -- | 1.77 | -- | 0.971 | 204 | -- |
| 20% | 119 | -- | 1.64 | -- | 0.971 | 189 | -- |
| 10% | 119 | -- | 1.49 | -- | 0.974 | 173 | -- |
| Active Idle | 119 | -- | 1.36 | -- | 0.977 | 157 | -- |
