SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| SuperMicro, Inc. Supermicro 6025B-TR+ (Intel Xeon processor 5160) | SPECpower_ssj2008 = 338 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

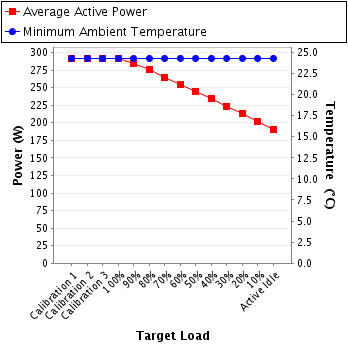

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 292 | 24.3 |
| Calibration 2 | 292 | 24.3 |
| Calibration 3 | 292 | 24.3 |
| 100% | 291 | 24.3 |
| 90% | 284 | 24.3 |
| 80% | 275 | 24.3 |
| 70% | 265 | 24.3 |
| 60% | 255 | 24.3 |
| 50% | 245 | 24.3 |
| 40% | 234 | 24.3 |
| 30% | 223 | 24.3 |
| 20% | 213 | 24.3 |
| 10% | 202 | 24.3 |
| Active Idle | 191 | 24.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Cal Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 120 | -- | 2.49 | -- | 0.975 | 292 | -- |
| Calibration 2 | 120 | -- | 2.49 | -- | 0.975 | 292 | -- |
| Calibration 3 | 120 | -- | 2.50 | -- | 0.975 | 292 | -- |
| 100% | 120 | -- | 2.49 | -- | 0.975 | 291 | -- |
| 90% | 120 | -- | 2.43 | -- | 0.973 | 284 | -- |
| 80% | 120 | -- | 2.36 | -- | 0.970 | 275 | -- |
| 70% | 120 | -- | 2.28 | -- | 0.967 | 265 | -- |
| 60% | 120 | -- | 2.20 | -- | 0.964 | 255 | -- |
| 50% | 120 | -- | 2.12 | -- | 0.961 | 245 | -- |
| 40% | 120 | -- | 2.03 | -- | 0.959 | 234 | -- |
| 30% | 120 | -- | 1.94 | -- | 0.956 | 223 | -- |
| 20% | 120 | -- | 1.86 | -- | 0.955 | 213 | -- |
| 10% | 120 | -- | 1.76 | -- | 0.955 | 202 | -- |
| Active Idle | 121 | -- | 1.65 | -- | 0.956 | 191 | -- |
