SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) | ssj_ops@100% = 221,450 ssj_ops@100% per JVM = 110,725 |
||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Feb 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 220,631 | ||
| Calibration 2 | 222,587 | ||
| Calibration 3 | 222,272 | ||
| ssj_ops@calibrated=222,429 | |||
| 100% | 99.6% | 222,429 | 221,450 |
| 90% | 90.2% | 200,187 | 200,639 |
| 80% | 79.7% | 177,944 | 177,295 |
| 70% | 70.6% | 155,701 | 157,133 |
| 60% | 59.7% | 133,458 | 132,898 |
| 50% | 49.9% | 111,215 | 110,948 |
| 40% | 39.9% | 88,972 | 88,791 |
| 30% | 29.7% | 66,729 | 66,046 |
| 20% | 19.9% | 44,486 | 44,199 |
| 10% | 10.0% | 22,243 | 22,298 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Supermicro 6025B-TR+ (Intel Xeon processor L5335) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Super Micro Computer, Inc. |
| Model: | Supermicro 6025B-TR+ (Intel Xeon processor L5335) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon processor L5335 |
| CPU Characteristics: | Quad-Core 2.0GHz, 8 MB L2, 1333 MHz system bus |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4x 2GB |
| Memory Details: | Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated |
| Power Supply Quantity and Rating (W): | 2 x 700W |
| Power Supply Details: | ABLECOM PWS-702A-1R Redundant Module Switching Power Supply |
| Disk Drive: | 1 x Western Digital WD360ADFD 36GB SATA |
| Disk Controller: | Intel 631xESB/6321ESB Serial ATA Storage Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4 |
| JVM Affinity: | JVM 1 to 0F, JVM 2 to F0 |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 110,670 |
| 0001.002 | 110,779 |
| ssj_ops@100% | 221,450 |
| ssj_ops@100% per JVM | 110,725 |

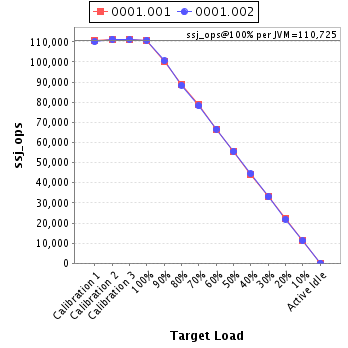

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 110,557 | ||
| Calibration 2 | 111,254 | ||
| Calibration 3 | 111,094 | ||
| ssj_ops@calibrated=111,174 | |||
| 100% | 99.5% | 111,174 | 110,670 |
| 90% | 90.0% | 100,057 | 100,082 |
| 80% | 79.9% | 88,939 | 88,864 |
| 70% | 71.0% | 77,822 | 78,919 |
| 60% | 59.6% | 66,704 | 66,278 |
| 50% | 49.8% | 55,587 | 55,318 |
| 40% | 39.9% | 44,470 | 44,322 |
| 30% | 29.7% | 33,352 | 33,046 |
| 20% | 20.1% | 22,235 | 22,304 |
| 10% | 10.0% | 11,117 | 11,108 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 110,074 | ||
| Calibration 2 | 111,334 | ||
| Calibration 3 | 111,177 | ||
| ssj_ops@calibrated=111,255 | |||
| 100% | 99.6% | 111,255 | 110,779 |
| 90% | 90.4% | 100,130 | 100,557 |
| 80% | 79.5% | 89,004 | 88,431 |
| 70% | 70.3% | 77,879 | 78,214 |
| 60% | 59.9% | 66,753 | 66,621 |
| 50% | 50.0% | 55,628 | 55,629 |
| 40% | 40.0% | 44,502 | 44,469 |
| 30% | 29.7% | 33,377 | 33,000 |
| 20% | 19.7% | 22,251 | 21,894 |
| 10% | 10.1% | 11,126 | 11,189 |
| Active Idle | 0 | 0 | |
