Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor L5335) ssj_ops@100% = 229,476
ssj_ops@100% per JVM = 57,369
Test Sponsor: Intel Corp. SPEC License #: 13 Test Method: Single Node
Tested By: Intel Corp. Test Location: Hillsboro, Oregon, USA Test Date: Nov 28, 2007
Hardware Availability: Nov-2007 Software Availability: Nov-2007 Publication: Feb 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,678
Calibration 2     230,013
Calibration 3     230,450
ssj_ops@calibrated=230,232
100% 99.7% 230,232 229,476
90% 89.8% 207,208 206,832
80% 79.6% 184,185 183,320
70% 70.6% 161,162 162,605
60% 59.7% 138,139 137,506
50% 49.5% 115,116 113,926
40% 39.8% 92,093 91,584
30% 30.1% 69,069 69,205
20% 20.0% 46,046 46,140
10% 10.1% 23,023 23,339
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025B-TR+ (Intel Xeon processor L5335)
Form Factor: --
CPU Name: Intel Xeon processor L5335
CPU Characteristics: Quad-Core 2.0GHz, 8 MB L2, 1333 MHz system bus
CPU Frequency (MHz): 2000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4x4GB
Memory Details: MT36HTF51272FY-80EEZD4ES 4GB 2RX4 PC2-6400F-555-11-E1 FBDIMM; slots 1A, 2A, 3A, 4A populated
Power Supply Quantity and Rating (W): 2 x 700W
Power Supply Details: ABLECOM PWS-702A-1R Redundant Module Switching Power Supply
Disk Drive: 1 x Western Digital WD360ADFD 36GB SATA
Disk Controller: Intel 631xESB/6321ESB Serial ATA Storage Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 Enterprise x64 Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -Xlargepages:exitOnFailure=true -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:2
JVM Affinity: JVM 1 to 03, JVM 2 to 0C, JVM 3 to 30, JVM 4 to C0
JVM Instances: 8
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 0.23
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 57,300
0001.002 57,729
0001.003 57,530
0001.004 56,918
ssj_ops@100% 229,476
ssj_ops@100% per JVM 57,369
Graph of per-instance results

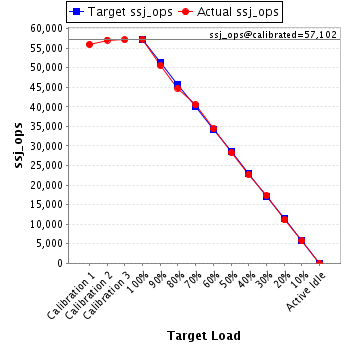

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,980
Calibration 2     57,080
Calibration 3     57,124
ssj_ops@calibrated=57,102
100% 100.3% 57,102 57,300
90% 88.7% 51,392 50,639
80% 78.4% 45,681 44,778
70% 70.9% 39,971 40,501
60% 60.1% 34,261 34,343
50% 49.5% 28,551 28,271
40% 39.9% 22,841 22,762
30% 30.2% 17,131 17,256
20% 19.4% 11,420 11,100
10% 10.0% 5,710 5,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

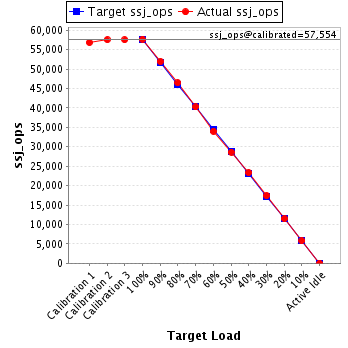

JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,878
Calibration 2     57,565
Calibration 3     57,543
ssj_ops@calibrated=57,554
100% 100.3% 57,554 57,729
90% 90.3% 51,799 51,989
80% 80.7% 46,043 46,467
70% 70.0% 40,288 40,270
60% 59.1% 34,532 33,992
50% 49.8% 28,777 28,636
40% 40.5% 23,022 23,326
30% 30.2% 17,266 17,390
20% 19.9% 11,511 11,456
10% 10.1% 5,755 5,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

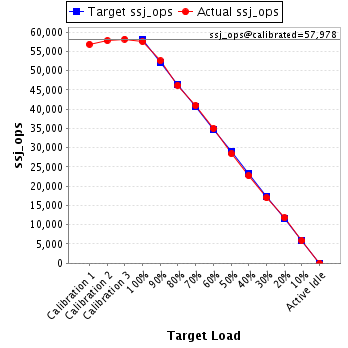

JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,838
Calibration 2     57,796
Calibration 3     58,161
ssj_ops@calibrated=57,978
100% 99.2% 57,978 57,530
90% 90.6% 52,180 52,548
80% 79.6% 46,383 46,170
70% 70.6% 40,585 40,942
60% 60.3% 34,787 34,960
50% 49.0% 28,989 28,410
40% 39.2% 23,191 22,705
30% 29.3% 17,393 16,962
20% 20.4% 11,596 11,800
10% 10.1% 5,798 5,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,981
Calibration 2     57,573
Calibration 3     57,622
ssj_ops@calibrated=57,598
100% 98.8% 57,598 56,918
90% 89.7% 51,838 51,656
80% 79.7% 46,078 45,905
70% 71.0% 40,318 40,891
60% 59.4% 34,559 34,211
50% 49.7% 28,799 28,610
40% 39.6% 23,039 22,792
30% 30.6% 17,279 17,597
20% 20.5% 11,520 11,783
10% 10.3% 5,760 5,952
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
