SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450) | SPECpower_ssj2008 = 778 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Jan 15, 2008 |
| Hardware Availability: | Feb-2008 | Software Availability: | Dec-2007 | Publication: | Jan 30, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

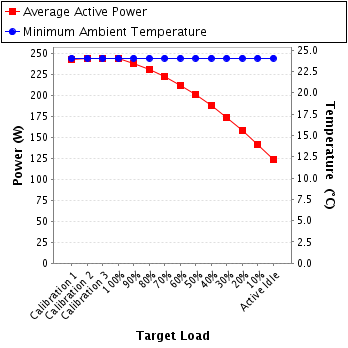

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 243 | 24.1 |
| Calibration 2 | 244 | 24.1 |
| Calibration 3 | 244 | 24.1 |
| 100% | 244 | 24.1 |
| 90% | 238 | 24.1 |
| 80% | 230 | 24.1 |
| 70% | 222 | 24.1 |
| 60% | 212 | 24.1 |
| 50% | 201 | 24.1 |
| 40% | 188 | 24.1 |
| 30% | 173 | 24.1 |
| 20% | 158 | 24.1 |
| 10% | 142 | 24.1 |
| Active Idle | 123 | 24.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT 210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1675 |
| Date of Calibration: | 7-Dec-2007 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | -- | 1.23 | -- | 0.961 | 243 | -- |
| Calibration 2 | 207 | -- | 1.23 | -- | 0.961 | 244 | -- |
| Calibration 3 | 207 | -- | 1.23 | -- | 0.961 | 244 | -- |
| 100% | 207 | -- | 1.23 | -- | 0.961 | 244 | -- |
| 90% | 207 | -- | 1.20 | -- | 0.959 | 238 | -- |
| 80% | 207 | -- | 1.17 | -- | 0.956 | 230 | -- |
| 70% | 207 | -- | 1.13 | -- | 0.951 | 222 | -- |
| 60% | 207 | -- | 1.08 | -- | 0.945 | 212 | -- |
| 50% | 207 | -- | 1.03 | -- | 0.939 | 201 | -- |
| 40% | 206 | -- | 0.978 | -- | 0.931 | 188 | -- |
| 30% | 206 | -- | 0.912 | -- | 0.922 | 173 | -- |
| 20% | 206 | -- | 0.841 | -- | 0.913 | 158 | -- |
| 10% | 206 | -- | 0.758 | -- | 0.907 | 142 | -- |
| Active Idle | 206 | -- | 0.653 | -- | 0.915 | 123 | -- |
