Hewlett-Packard Company Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450) ssj_ops@100% = 299,610
ssj_ops@100% per JVM = 74,903
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Jan 15, 2008
Hardware Availability: Feb-2008 Software Availability: Dec-2007 Publication: Jan 30, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     299,891
Calibration 2     302,034
Calibration 3     301,350
ssj_ops@calibrated=301,692
100% 99.3% 301,692 299,610
90% 89.8% 271,523 271,070
80% 79.8% 241,354 240,820
70% 70.3% 211,184 212,024
60% 60.0% 181,015 181,153
50% 50.2% 150,846 151,573
40% 40.3% 120,677 121,535
30% 29.9% 90,508 90,177
20% 20.0% 60,338 60,236
10% 10.1% 30,169 30,370
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: Proliant DL180 G5 (3.00 GHz, Intel Xeon processor E5450)
Form Factor: --
CPU Name: Intel Xeon E5450
CPU Characteristics: 3.00 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU Frequency (MHz): 3000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2x4096 MB, 4x2048 MB
Memory Details: PC2-5300P CL5; slots 1-2 4096 MB; slots 3-6 2048 MB
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: HP part # HSTNS-PL12
Disk Drive: 1 x 60GB HP, 1.5G, 5.4K, 2.5" SFF SATA HDD
Disk Controller: Integrated ICH-9 SATA
# and type of Network Interface Cards (NICs) Installed: 1xNC105i
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: None
Other Hardware: None
Software
Power Management: None
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /affinity" with "0x3","0xc","0x30" and "0xc0" CPU masks.
JVM Instances: 8
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 74,563
0001.002 74,973
0001.003 74,900
0001.004 75,174
ssj_ops@100% 299,610
ssj_ops@100% per JVM 74,903

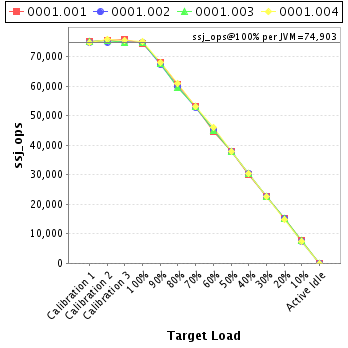

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,050
Calibration 2     75,415
Calibration 3     75,718
ssj_ops@calibrated=75,566
100% 98.7% 75,566 74,563
90% 90.0% 68,010 67,982
80% 80.0% 60,453 60,436
70% 70.2% 52,897 53,053
60% 59.0% 45,340 44,612
50% 50.1% 37,783 37,864
40% 39.6% 30,227 29,933
30% 29.7% 22,670 22,477
20% 20.0% 15,113 15,124
10% 10.1% 7,557 7,667
Active Idle   0 0
Graph of results
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,876
Calibration 2     74,985
Calibration 3     75,019
ssj_ops@calibrated=75,002
100% 100.0% 75,002 74,973
90% 89.9% 67,502 67,399
80% 79.7% 60,002 59,798
70% 70.5% 52,502 52,851
60% 60.5% 45,001 45,377
50% 50.4% 37,501 37,812
40% 40.8% 30,001 30,590
30% 30.1% 22,501 22,562
20% 20.2% 15,000 15,134
10% 10.0% 7,500 7,533
Active Idle   0 0
Graph of results
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,194
Calibration 2     75,663
Calibration 3     74,944
ssj_ops@calibrated=75,304
100% 99.5% 75,304 74,900
90% 89.9% 67,773 67,690
80% 79.1% 60,243 59,588
70% 70.5% 52,712 53,092
60% 59.8% 45,182 45,033
50% 50.4% 37,652 37,949
40% 40.5% 30,121 30,500
30% 30.0% 22,591 22,566
20% 20.0% 15,061 15,086
10% 10.2% 7,530 7,675
Active Idle   0 0
Graph of results
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,772
Calibration 2     75,970
Calibration 3     75,669
ssj_ops@calibrated=75,820
100% 99.1% 75,820 75,174
90% 89.7% 68,238 67,998
80% 80.5% 60,656 60,998
70% 69.9% 53,074 53,028
60% 60.8% 45,492 46,131
50% 50.0% 37,910 37,948
40% 40.2% 30,328 30,512
30% 29.8% 22,746 22,573
20% 19.6% 15,164 14,892
10% 9.9% 7,582 7,496
Active Idle   0 0
Graph of results
