Dell Inc. PowerEdge 1950 III (Intel Xeon E5440) | ssj_ops@100% = 284,028 ssj_ops@100% per JVM = 142,014 |
||||
Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 7, 2008 |
Hardware Availability: | Mar-2008 | Software Availability: | Oct-2007 | Publication: | Feb 27, 2008 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 288,490 | ||
Calibration 2 | 287,765 | ||
Calibration 3 | 286,047 | ||
ssj_ops@calibrated=286,906 | |||
100% | 99.0% | 286,906 | 284,028 |
90% | 89.8% | 258,215 | 257,533 |
80% | 80.2% | 229,525 | 230,234 |
70% | 70.3% | 200,834 | 201,611 |
60% | 60.2% | 172,144 | 172,604 |
50% | 50.3% | 143,453 | 144,236 |
40% | 40.4% | 114,762 | 115,928 |
30% | 29.7% | 86,072 | 85,343 |
20% | 20.0% | 57,381 | 57,402 |
10% | 10.1% | 28,691 | 29,070 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | PowerEdge 1950 III (Intel Xeon E5440) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Dell Inc. |
Model: | PowerEdge 1950 III (Intel Xeon E5440) |
Form Factor: | -- |
CPU Name: | Intel Xeon E5440 |
CPU Characteristics: | 1333 MHz system bus |
CPU Frequency (MHz): | 2833 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 8 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32KB I + 32KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
Tertiary Cache: | None |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4x2048MB |
Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 3, 5, and 7 populated |
Power Supply Quantity and Rating (W): | 1 x 670 |
Power Supply Details: | Dell P/N UU452 |
Disk Drive: | 1 x 73GB 10K RPM 2.5" SAS |
Disk Controller: | SAS 6iR |
# and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (Server Balanced Power and Performance) |
Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
OS Version: | Service Pack 2 |
Filesystem: | NTFS |
JVM Vendor: | BEA Systems, Inc. |
JVM Version: | BEA JRockit(R) 6 P27.4.0-10 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64) |
JVM Command-line Options: | -Xms3300m -Xns2900m -Xmx3300m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k |
JVM Affinity: | start /affinity [0f,f0] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 3300 |
JVM Maximum Heap (MB): | 3300 |
JVM Address Bits: | 64 |
Boot Firmware Version: | -- |
Management Firmware Version: | -- |
Workload Version: | SSJ 1.1 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
0001.001 | 140,802 |
0001.002 | 143,226 |
ssj_ops@100% | 284,028 |
ssj_ops@100% per JVM | 142,014 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 143,765 | ||
Calibration 2 | 143,822 | ||
Calibration 3 | 142,633 | ||
ssj_ops@calibrated=143,228 | |||
100% | 98.3% | 143,228 | 140,802 |
90% | 89.7% | 128,905 | 128,475 |
80% | 80.6% | 114,582 | 115,441 |
70% | 69.6% | 100,259 | 99,618 |
60% | 60.5% | 85,937 | 86,698 |
50% | 50.2% | 71,614 | 71,850 |
40% | 40.7% | 57,291 | 58,271 |
30% | 29.3% | 42,968 | 42,005 |
20% | 20.2% | 28,646 | 28,914 |
10% | 10.2% | 14,323 | 14,628 |
Active Idle | 0 | 0 |

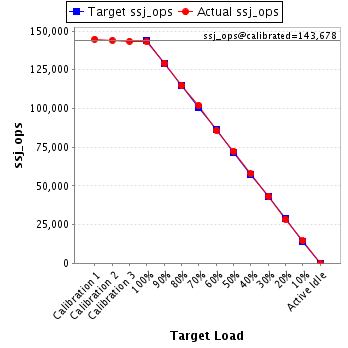

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 144,725 | ||
Calibration 2 | 143,942 | ||
Calibration 3 | 143,414 | ||
ssj_ops@calibrated=143,678 | |||
100% | 99.7% | 143,678 | 143,226 |
90% | 89.8% | 129,310 | 129,058 |
80% | 79.9% | 114,943 | 114,793 |
70% | 71.0% | 100,575 | 101,993 |
60% | 59.8% | 86,207 | 85,906 |
50% | 50.4% | 71,839 | 72,386 |
40% | 40.1% | 57,471 | 57,657 |
30% | 30.2% | 43,103 | 43,338 |
20% | 19.8% | 28,736 | 28,488 |
10% | 10.1% | 14,368 | 14,443 |
Active Idle | 0 | 0 |
