SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3450 | ssj_ops@100% = 323,998 ssj_ops@100% per JVM = 80,999 |
||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | Mar 7, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | Jun-2008 | Publication: | Mar 26, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 320,096 | ||
| Calibration 2 | 326,021 | ||
| Calibration 3 | 326,421 | ||
| ssj_ops@calibrated=326,221 | |||
| 100% | 99.3% | 326,221 | 323,998 |
| 90% | 90.4% | 293,599 | 295,016 |
| 80% | 80.0% | 260,977 | 260,862 |
| 70% | 69.9% | 228,355 | 227,968 |
| 60% | 59.9% | 195,733 | 195,269 |
| 50% | 49.9% | 163,110 | 162,708 |
| 40% | 40.1% | 130,488 | 130,926 |
| 30% | 30.0% | 97,866 | 97,890 |
| 20% | 20.0% | 65,244 | 65,137 |
| 10% | 9.9% | 32,622 | 32,305 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | IBM System x3450 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3450 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5462 |
| CPU Characteristics: | Quad-core 2.8GHz, 1600 MHZ FSB |
| CPU Frequency (MHz): | 2800 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32KB I + 32KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096MB PC2-5300F |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 5, 9, 13 populated |
| Power Supply Quantity and Rating (W): | 1 x 600 |
| Power Supply Details: | Delta TDPS-600CB C |
| Disk Drive: | 1 x 250 GB (SATA, 7.2k RPM, 3.5") |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | None |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Windows Server 2003 R2 Enterprise x64 Edition SP1 |
| OS Version: | R2 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64bit (pwa6460sr1-20080305_01) |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C,30,C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |

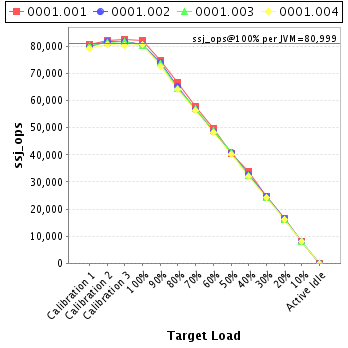

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 82,183 |
| 0001.002 | 80,834 |
| 0001.003 | 80,426 |
| 0001.004 | 80,555 |
| ssj_ops@100% | 323,998 |
| ssj_ops@100% per JVM | 80,999 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 80,770 | ||
| Calibration 2 | 82,127 | ||
| Calibration 3 | 82,660 | ||
| ssj_ops@calibrated=82,394 | |||
| 100% | 99.7% | 82,394 | 82,183 |
| 90% | 90.6% | 74,154 | 74,670 |
| 80% | 80.9% | 65,915 | 66,623 |
| 70% | 70.2% | 57,676 | 57,864 |
| 60% | 60.1% | 49,436 | 49,532 |
| 50% | 49.2% | 41,197 | 40,529 |
| 40% | 40.9% | 32,957 | 33,668 |
| 30% | 29.9% | 24,718 | 24,649 |
| 20% | 19.8% | 16,479 | 16,346 |
| 10% | 9.7% | 8,239 | 7,996 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 79,978 | ||
| Calibration 2 | 81,693 | ||
| Calibration 3 | 81,635 | ||
| ssj_ops@calibrated=81,664 | |||
| 100% | 99.0% | 81,664 | 80,834 |
| 90% | 90.5% | 73,498 | 73,933 |
| 80% | 80.0% | 65,331 | 65,331 |
| 70% | 69.4% | 57,165 | 56,649 |
| 60% | 59.5% | 48,998 | 48,551 |
| 50% | 50.0% | 40,832 | 40,845 |
| 40% | 40.0% | 32,666 | 32,636 |
| 30% | 30.2% | 24,499 | 24,700 |
| 20% | 20.2% | 16,333 | 16,492 |
| 10% | 9.8% | 8,166 | 7,980 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 80,273 | ||
| Calibration 2 | 81,563 | ||
| Calibration 3 | 81,837 | ||
| ssj_ops@calibrated=81,700 | |||
| 100% | 98.4% | 81,700 | 80,426 |
| 90% | 90.4% | 73,530 | 73,847 |
| 80% | 79.1% | 65,360 | 64,644 |
| 70% | 69.9% | 57,190 | 57,118 |
| 60% | 60.0% | 49,020 | 48,997 |
| 50% | 50.2% | 40,850 | 41,038 |
| 40% | 39.7% | 32,680 | 32,445 |
| 30% | 29.8% | 24,510 | 24,308 |
| 20% | 19.9% | 16,340 | 16,225 |
| 10% | 10.0% | 8,170 | 8,154 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 79,075 | ||
| Calibration 2 | 80,637 | ||
| Calibration 3 | 80,288 | ||
| ssj_ops@calibrated=80,463 | |||
| 100% | 100.1% | 80,463 | 80,555 |
| 90% | 90.2% | 72,416 | 72,566 |
| 80% | 79.9% | 64,370 | 64,264 |
| 70% | 70.0% | 56,324 | 56,337 |
| 60% | 59.9% | 48,278 | 48,189 |
| 50% | 50.1% | 40,231 | 40,296 |
| 40% | 40.0% | 32,185 | 32,176 |
| 30% | 30.1% | 24,139 | 24,233 |
| 20% | 20.0% | 16,093 | 16,075 |
| 10% | 10.2% | 8,046 | 8,175 |
| Active Idle | 0 | 0 | |
