SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R300 | SPECpower_ssj2008 = 800 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 26, 2008 |
| Hardware Availability: | Mar-2008 | Software Availability: | Feb-2008 | Publication: | Mar 26, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

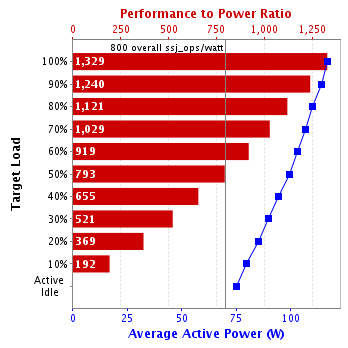

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 155,342 | 117 | 1,329 |
| 90% | 90.6% | 141,384 | 114 | 1,240 |
| 80% | 79.1% | 123,517 | 110 | 1,121 |
| 70% | 70.5% | 110,014 | 107 | 1,029 |
| 60% | 60.8% | 94,928 | 103 | 919 |
| 50% | 50.5% | 78,763 | 99.3 | 793 |
| 40% | 39.6% | 61,772 | 94.3 | 655 |
| 30% | 30.0% | 46,824 | 89.8 | 521 |
| 20% | 20.2% | 31,456 | 85.3 | 369 |
| 10% | 9.8% | 15,232 | 79.5 | 192 |
| Active Idle | 0 | 75.1 | 0 | |
| ∑ssj_ops / ∑power = | 800 | |||
| Set Identifier: | sut |
| Set Description: | PowerEdge R300 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R300 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5410 |
| CPU Characteristics: | Quad Core, 2.33GHz, 12MB L2 Cache |
| CPU Frequency (MHz): | 2330 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32KB I + 32KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2x4096MB |
| Memory Details: | DDR2-667 CL5; slots 1 and 2 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | Dell P/N DU636 |
| Disk Drive: | 1 x 160GB 7200 RPM 3.5" SATA |
| Disk Controller: | Onboard SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 6 R27.5.0-110 (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-x86_64) |
| JVM Command-line Options: | -Xms3600m -Xns3100m -Xmx3600m -XXaggressive -XXthroughputcompaction -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [03,0C] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 1950 |
| CPU Description: | Intel Xeon 5160 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 2003 Server Enterprise Edition |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | JRockit(R) 1.6.0_02 build R26.4.0-63 (32-bit) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G643889 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1458 |
| Date of Calibration: | 24-Oct-2007 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 117 | 23.1 |
| 90% | 114 | 23.1 |
| 80% | 110 | 23.1 |
| 70% | 107 | 23.1 |
| 60% | 103 | 23.1 |
| 50% | 99.3 | 23.1 |
| 40% | 94.3 | 23.1 |
| 30% | 89.8 | 23.1 |
| 20% | 85.3 | 23.1 |
| 10% | 79.5 | 23.1 |
| Active Idle | 75.1 | 23.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 1 wire | 23.1 | 250 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 155,130 | ||
| Calibration 2 | 156,081 | ||
| Calibration 3 | 156,107 | ||
| ssj_ops@calibrated=156,094 | |||
| 100% | 99.5% | 156,094 | 155,342 |
| 90% | 90.6% | 140,485 | 141,384 |
| 80% | 79.1% | 124,875 | 123,517 |
| 70% | 70.5% | 109,266 | 110,014 |
| 60% | 60.8% | 93,656 | 94,928 |
| 50% | 50.5% | 78,047 | 78,763 |
| 40% | 39.6% | 62,438 | 61,772 |
| 30% | 30.0% | 46,828 | 46,824 |
| 20% | 20.2% | 31,219 | 31,456 |
| 10% | 9.8% | 15,609 | 15,232 |
| Active Idle | 0 | 0 | |
