SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3250 M2 | SPECpower_ssj2008 = 913 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Apr 25, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Jun-2008 | Publication: | May 21, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

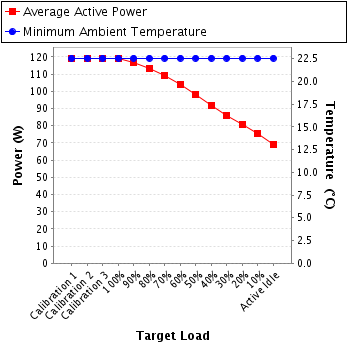

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 119 | 22.6 |
| Calibration 2 | 119 | 22.6 |
| Calibration 3 | 119 | 22.6 |
| 100% | 119 | 22.6 |
| 90% | 117 | 22.6 |
| 80% | 113 | 22.6 |
| 70% | 109 | 22.6 |
| 60% | 104 | 22.6 |
| 50% | 97.9 | 22.6 |
| 40% | 91.7 | 22.6 |
| 30% | 85.9 | 22.6 |
| 20% | 80.7 | 22.6 |
| 10% | 75.3 | 22.6 |
| Active Idle | 68.9 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digiwatchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | -- | 0.650 | -- | 0.887 | 119 | -- |
| Calibration 2 | 206 | -- | 0.651 | -- | 0.887 | 119 | -- |
| Calibration 3 | 207 | -- | 0.651 | -- | 0.887 | 119 | -- |
| 100% | 206 | -- | 0.650 | -- | 0.887 | 119 | -- |
| 90% | 206 | -- | 0.639 | -- | 0.884 | 117 | -- |
| 80% | 207 | -- | 0.623 | -- | 0.880 | 113 | -- |
| 70% | 207 | -- | 0.603 | -- | 0.875 | 109 | -- |
| 60% | 207 | -- | 0.578 | -- | 0.867 | 104 | -- |
| 50% | 207 | -- | 0.551 | -- | 0.860 | 97.9 | -- |
| 40% | 207 | -- | 0.521 | -- | 0.851 | 91.7 | -- |
| 30% | 207 | -- | 0.493 | -- | 0.841 | 85.9 | -- |
| 20% | 207 | -- | 0.468 | -- | 0.832 | 80.7 | -- |
| 10% | 207 | -- | 0.442 | -- | 0.822 | 75.3 | -- |
| Active Idle | 207 | -- | 0.410 | -- | 0.811 | 68.9 | -- |
