SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| SGI Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) | SPECpower_ssj2008 = 681 overall ssj_ops/watt | ||||
| Test Sponsor: | SGI | SPEC License #: | 4 | Test Method: | Single Node |
| Tested By: | SGI | Test Location: | Mountain View,CA, USA | Test Date: | May 5, 2008 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Jun 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

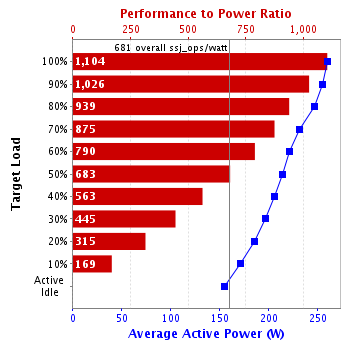

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.0% | 287,032 | 260 | 1,104 |
| 90% | 90.2% | 261,659 | 255 | 1,026 |
| 80% | 80.0% | 231,992 | 247 | 939 |
| 70% | 69.8% | 202,393 | 231 | 875 |
| 60% | 60.2% | 174,556 | 221 | 790 |
| 50% | 50.4% | 146,029 | 214 | 683 |
| 40% | 39.9% | 115,637 | 206 | 563 |
| 30% | 30.2% | 87,535 | 197 | 445 |
| 20% | 20.1% | 58,312 | 185 | 315 |
| 10% | 10.0% | 28,937 | 172 | 169 |
| Active Idle | 0 | 155 | 0 | |
| ∑ssj_ops / ∑power = | 681 | |||
| Set Identifier: | sut |
| Set Description: | Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | SGI |
| Model: | Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 2.5 GHz, 12 MB L2 Cache, Quad-Core, 1333 MHz System Bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096 MB |
| Memory Details: | SGI part # 9010127, 4GB DDR2 667 CL5 ECC Slots 1,3,5,7 |
| Power Supply Quantity and Rating (W): | 1 x 980 |
| Power Supply Details: | SGI part # 060-0262-001 |
| Disk Drive: | 1 x 250GB 7200 RPM SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | Integrated 2 x Intel Gigabit Ethernet (80003ES2LAN, e1000 driver) |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled(See SUT Notes) |
| Operating System (OS): | SUSE Linux Enterprise Server 10 (x86_64) |
| OS Version: | 10 SP1 |
| Filesystem: | xfs |
| JVM Vendor: | BEA Systems, Inc |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1523-linux-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3400m -Xns3200m -Xmx3400m -XXaggressive -XXlazyunlocking -XXthroughputcompaction -Xlargepages -Xgc:genpar -XXcallprofiling -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | numactl --physcpubind[0,2][4,6][1,3][5,7] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3400 |
| JVM Maximum Heap (MB): | 3400 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc |
| Model: | Dell Precision 490 |
| CPU Description: | Intel Xeon 5140 |
| Memory amount (GB): | 8 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise Edition |
| JVM Vendor: | BEA Systems, Inc |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32, compiled mode) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 |
| Serial Number: | 91H132263 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd |
| Calibration Label: | 08-0385 |
| Date of Calibration: | 29-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.14.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 260 | 21.0 |
| 90% | 255 | 21.0 |
| 80% | 247 | 21.0 |
| 70% | 231 | 21.0 |
| 60% | 221 | 21.0 |
| 50% | 214 | 21.0 |
| 40% | 206 | 20.9 |
| 30% | 197 | 20.9 |
| 20% | 185 | 20.9 |
| 10% | 172 | 20.9 |
| Active Idle | 155 | 20.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.9 | 13 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 288,811 | ||
| Calibration 2 | 290,254 | ||
| Calibration 3 | 289,625 | ||
| ssj_ops@calibrated=289,940 | |||
| 100% | 99.0% | 289,940 | 287,032 |
| 90% | 90.2% | 260,946 | 261,659 |
| 80% | 80.0% | 231,952 | 231,992 |
| 70% | 69.8% | 202,958 | 202,393 |
| 60% | 60.2% | 173,964 | 174,556 |
| 50% | 50.4% | 144,970 | 146,029 |
| 40% | 39.9% | 115,976 | 115,637 |
| 30% | 30.2% | 86,982 | 87,535 |
| 20% | 20.1% | 57,988 | 58,312 |
| 10% | 10.0% | 28,994 | 28,937 |
| Active Idle | 0 | 0 | |
