SGI Altix XE250 (Intel Xeon processor X5272) ssj_ops@100% = 208,444
ssj_ops@100% per JVM = 104,222
Test Sponsor: SGI SPEC License #: 4 Test Method: Single Node
Tested By: SGI Test Location: Mountain View,CA, USA Test Date: May 9, 2008
Hardware Availability: Feb-2008 Software Availability: Apr-2008 Publication: Jun 4, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,008
Calibration 2     210,845
Calibration 3     211,359
ssj_ops@calibrated=211,102
100% 98.7% 211,102 208,444
90% 91.0% 189,992 191,998
80% 80.4% 168,882 169,806
70% 69.7% 147,772 147,217
60% 59.6% 126,661 125,859
50% 50.2% 105,551 105,878
40% 40.6% 84,441 85,718
30% 29.6% 63,331 62,557
20% 19.8% 42,220 41,828
10% 10.2% 21,110 21,455
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Altix XE250 (Intel Xeon processor X5272)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: SGI
Model: Altix XE250 (Intel Xeon processor X5272)
Form Factor: --
CPU Name: Intel Xeon X5272
CPU Characteristics: 3.4 GHz, 6 MB L2 Cache, Dual-Core, 1600 MHz System Bus
CPU Frequency (MHz): 3400
CPU(s) Enabled: 4 cores, 2 chips, 2 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4x2048 MB
Memory Details: SGI part # 9010126, 2GB, DDR2, 800, CL5, ECC Slots: 1A, 2A, 3A, 4A
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: SGI part # 060-0276-001
Disk Drive: 1 x Seagate 300GB 15K RPM SAS
Disk Controller: LSI Logic SAS1068E SAS
# and type of Network Interface Cards (NICs) Installed: Integrated 2 x Intel Gigabit Ethernet 82575EB, igb driver
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 10 (x86_64)
OS Version: 10 SP1
Filesystem: xfs
JVM Vendor: BEA Systems, Inc
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1523-linux-x86_64, compiled mode)
JVM Command-line Options: -Xms3400m -Xns3200m -Xmx3400m -XXaggressive -XXlazyunlocking -XXthroughputcompaction -Xlargepages -Xgc:genpar -XXcallprofiling -XXtlasize:min=4k,preferred=1024k
JVM Affinity: numactl --physcpubind[0,2][1,3]
JVM Instances: 4
JVM Initial Heap (MB): 3400
JVM Maximum Heap (MB): 3400
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 103,579
0001.002 104,865
ssj_ops@100% 208,444
ssj_ops@100% per JVM 104,222
Graph of per-instance results

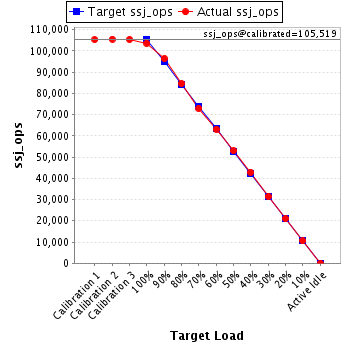

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,333
Calibration 2     105,557
Calibration 3     105,482
ssj_ops@calibrated=105,519
100% 98.2% 105,519 103,579
90% 91.4% 94,967 96,396
80% 80.2% 84,415 84,623
70% 69.2% 73,863 73,025
60% 59.9% 63,312 63,179
50% 50.2% 52,760 52,936
40% 40.6% 42,208 42,857
30% 29.8% 31,656 31,489
20% 19.9% 21,104 20,991
10% 10.0% 10,552 10,536
Active Idle   0 0
Graph of results
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,675
Calibration 2     105,288
Calibration 3     105,878
ssj_ops@calibrated=105,583
100% 99.3% 105,583 104,865
90% 90.5% 95,025 95,602
80% 80.7% 84,466 85,183
70% 70.3% 73,908 74,192
60% 59.4% 63,350 62,679
50% 50.1% 52,792 52,942
40% 40.6% 42,233 42,860
30% 29.4% 31,675 31,069
20% 19.7% 21,117 20,837
10% 10.3% 10,558 10,920
Active Idle   0 0
Graph of results
