SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge Energy Smart 1950 III (Intel Xeon L5420) | SPECpower_ssj2008 = 744 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 18, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | Mar-2008 | Publication: | Jul 31, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

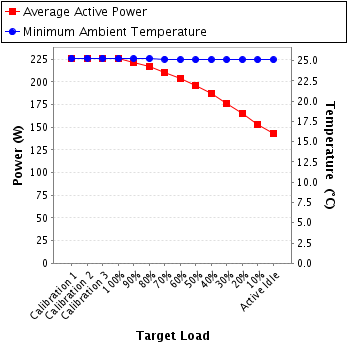

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 226 | 25.3 |
| Calibration 2 | 226 | 25.3 |
| Calibration 3 | 226 | 25.3 |
| 100% | 226 | 25.2 |
| 90% | 222 | 25.2 |
| 80% | 217 | 25.2 |
| 70% | 211 | 25.2 |
| 60% | 204 | 25.1 |
| 50% | 196 | 25.1 |
| 40% | 187 | 25.1 |
| 30% | 177 | 25.1 |
| 20% | 166 | 25.1 |
| 10% | 154 | 25.1 |
| Active Idle | 143 | 25.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Instek Corporation |
| Model: | GPM-8212 |
| Serial Number: | CH190096 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 1997285 |
| Date of Calibration: | Jan-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.2-13f4b0b4 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.2.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

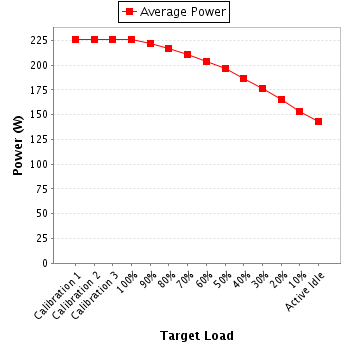

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | -- | 1.15 | -- | 0.963 | 226 | -- |
| Calibration 2 | 204 | -- | 1.15 | -- | 0.963 | 226 | -- |
| Calibration 3 | 204 | -- | 1.15 | -- | 0.963 | 226 | -- |
| 100% | 204 | -- | 1.15 | -- | 0.963 | 226 | -- |
| 90% | 204 | -- | 1.13 | -- | 0.961 | 222 | -- |
| 80% | 205 | -- | 1.10 | -- | 0.960 | 217 | -- |
| 70% | 205 | -- | 1.07 | -- | 0.958 | 211 | -- |
| 60% | 205 | -- | 1.04 | -- | 0.955 | 204 | -- |
| 50% | 205 | -- | 1.01 | -- | 0.951 | 196 | -- |
| 40% | 205 | -- | 0.961 | -- | 0.947 | 187 | -- |
| 30% | 205 | -- | 0.913 | -- | 0.943 | 177 | -- |
| 20% | 205 | -- | 0.859 | -- | 0.941 | 166 | -- |
| 10% | 205 | -- | 0.800 | -- | 0.934 | 154 | -- |
| Active Idle | 206 | -- | 0.749 | -- | 0.930 | 143 | -- |
