SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge Energy Smart 1950 III (Intel Xeon L5420) | ssj_ops@100% = 282,904 ssj_ops@100% per JVM = 70,726 |
||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 18, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | Mar-2008 | Publication: | Jul 31, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 284,426 | ||
| Calibration 2 | 285,576 | ||
| Calibration 3 | 283,286 | ||
| ssj_ops@calibrated=284,431 | |||
| 100% | 99.5% | 284,431 | 282,904 |
| 90% | 89.8% | 255,988 | 255,378 |
| 80% | 80.2% | 227,545 | 228,157 |
| 70% | 70.0% | 199,102 | 199,059 |
| 60% | 60.0% | 170,659 | 170,518 |
| 50% | 49.7% | 142,215 | 141,502 |
| 40% | 40.2% | 113,772 | 114,231 |
| 30% | 30.4% | 85,329 | 86,469 |
| 20% | 20.2% | 56,886 | 57,474 |
| 10% | 9.9% | 28,443 | 28,141 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | PowerEdge Energy Smart 1950 III (Intel Xeon L5420) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge Energy Smart 1950 III (Intel Xeon L5420) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5420 |
| CPU Characteristics: | Quad-Core, 2.50GHz, 1333MHz System Bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | DDR2-667 CL5 FBDIMM; Slots 1,3,5,7 populated |
| Power Supply Quantity and Rating (W): | 1 x 670 |
| Power Supply Details: | Dell P/N UU452 |
| Disk Drive: | 1 x 73GB 10K RPM SAS |
| Disk Controller: | SAS 6iR |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit (R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1600m -Xns1400m -Xmx1600m -XXaggressive -XXthroughputcompaction -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=256k |
| JVM Affinity: | start /affinity [03,0C,30,C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |

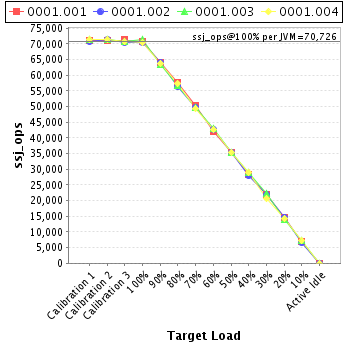

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 70,871 |
| 0001.002 | 70,394 |
| 0001.003 | 71,345 |
| 0001.004 | 70,295 |
| ssj_ops@100% | 282,904 |
| ssj_ops@100% per JVM | 70,726 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 71,009 | ||
| Calibration 2 | 71,218 | ||
| Calibration 3 | 71,248 | ||
| ssj_ops@calibrated=71,233 | |||
| 100% | 99.5% | 71,233 | 70,871 |
| 90% | 90.0% | 64,110 | 64,135 |
| 80% | 81.0% | 56,986 | 57,734 |
| 70% | 70.5% | 49,863 | 50,244 |
| 60% | 59.2% | 42,740 | 42,160 |
| 50% | 49.6% | 35,616 | 35,332 |
| 40% | 39.7% | 28,493 | 28,296 |
| 30% | 30.7% | 21,370 | 21,839 |
| 20% | 20.3% | 14,247 | 14,466 |
| 10% | 9.9% | 7,123 | 7,087 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 70,820 | ||
| Calibration 2 | 71,376 | ||
| Calibration 3 | 70,589 | ||
| ssj_ops@calibrated=70,982 | |||
| 100% | 99.2% | 70,982 | 70,394 |
| 90% | 90.2% | 63,884 | 64,023 |
| 80% | 79.5% | 56,786 | 56,418 |
| 70% | 70.2% | 49,688 | 49,815 |
| 60% | 60.3% | 42,589 | 42,823 |
| 50% | 49.6% | 35,491 | 35,237 |
| 40% | 39.4% | 28,393 | 27,991 |
| 30% | 30.7% | 21,295 | 21,799 |
| 20% | 20.7% | 14,196 | 14,726 |
| 10% | 9.4% | 7,098 | 6,640 |
| Active Idle | 0 | 0 | |

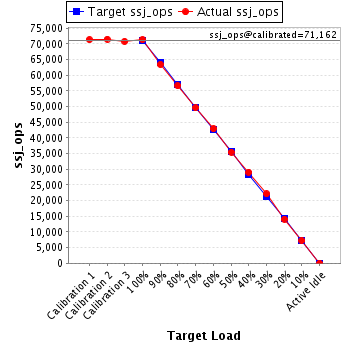

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 71,345 | ||
| Calibration 2 | 71,513 | ||
| Calibration 3 | 70,810 | ||
| ssj_ops@calibrated=71,162 | |||
| 100% | 100.3% | 71,162 | 71,345 |
| 90% | 89.1% | 64,045 | 63,425 |
| 80% | 79.6% | 56,929 | 56,647 |
| 70% | 69.7% | 49,813 | 49,602 |
| 60% | 60.3% | 42,697 | 42,941 |
| 50% | 49.9% | 35,581 | 35,477 |
| 40% | 40.9% | 28,465 | 29,073 |
| 30% | 31.1% | 21,348 | 22,133 |
| 20% | 19.8% | 14,232 | 14,087 |
| 10% | 10.2% | 7,116 | 7,248 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 71,252 | ||
| Calibration 2 | 71,469 | ||
| Calibration 3 | 70,640 | ||
| ssj_ops@calibrated=71,054 | |||
| 100% | 98.9% | 71,054 | 70,295 |
| 90% | 89.8% | 63,949 | 63,795 |
| 80% | 80.7% | 56,843 | 57,358 |
| 70% | 69.5% | 49,738 | 49,398 |
| 60% | 59.9% | 42,633 | 42,594 |
| 50% | 49.9% | 35,527 | 35,456 |
| 40% | 40.6% | 28,422 | 28,870 |
| 30% | 29.1% | 21,316 | 20,697 |
| 20% | 20.0% | 14,211 | 14,195 |
| 10% | 10.1% | 7,105 | 7,166 |
| Active Idle | 0 | 0 | |
