Fujitsu Siemens Computers PRIMERGY RX200 S4 (Intel Xeon L5430) ssj_ops@100% = 301,506
ssj_ops@100% per JVM = 75,376
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: Aug 20, 2008
Hardware Availability: Sep-2008 Software Availability: Jul-2008 Publication: Sep 10, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     297,906
Calibration 2     301,846
Calibration 3     302,246
ssj_ops@calibrated=302,046
100% 99.8% 302,046 301,506
90% 90.5% 271,841 273,417
80% 80.0% 241,637 241,528
70% 69.8% 211,432 210,827
60% 60.4% 181,227 182,566
50% 50.2% 151,023 151,759
40% 40.3% 120,818 121,783
30% 30.4% 90,614 91,680
20% 20.2% 60,409 61,004
10% 9.8% 30,205 29,453
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX200 S4 (Intel Xeon L5430)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX200 S4 (Intel Xeon L5430)
Form Factor: --
CPU Name: Intel Xeon L5430
CPU Characteristics: 2.66GHz, 2x6MB L2 cache, 1333MHz system bus
CPU Frequency (MHz): 2667
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC2-5300F 2Rx8 (CAS 5-5-5)
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: Delta Electronics, Inc DPS-650JB C
Disk Drive: 1 x Seagate (3.5", SATA, 160GB, 7.2krpm)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Broadcom BCM5708C NetXtreme II GigE (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: Version 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6.0 P27.5.0 (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64)
JVM Command-line Options: -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction
JVM Affinity: start /affinity [0x03,0x30,0x0C,0xC0]
JVM Instances: 8
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 74,924
0001.002 76,016
0001.003 75,405
0001.004 75,161
ssj_ops@100% 301,506
ssj_ops@100% per JVM 75,376
Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,307
Calibration 2     74,975
Calibration 3     75,599
ssj_ops@calibrated=75,287
100% 99.5% 75,287 74,924
90% 90.5% 67,759 68,104
80% 80.3% 60,230 60,442
70% 69.1% 52,701 52,047
60% 60.4% 45,172 45,485
50% 49.9% 37,644 37,548
40% 39.8% 30,115 29,945
30% 30.1% 22,586 22,655
20% 20.2% 15,057 15,245
10% 9.7% 7,529 7,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,680
Calibration 2     75,813
Calibration 3     75,672
ssj_ops@calibrated=75,743
100% 100.4% 75,743 76,016
90% 90.3% 68,168 68,428
80% 79.1% 60,594 59,885
70% 69.5% 53,020 52,648
60% 60.8% 45,446 46,019
50% 50.2% 37,871 38,043
40% 40.9% 30,297 30,943
30% 30.5% 22,723 23,083
20% 20.0% 15,149 15,129
10% 10.0% 7,574 7,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

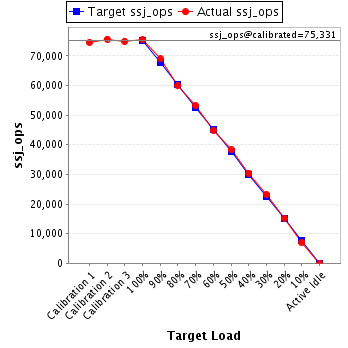

JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,634
Calibration 2     75,667
Calibration 3     74,995
ssj_ops@calibrated=75,331
100% 100.1% 75,331 75,405
90% 91.6% 67,798 68,995
80% 79.6% 60,265 59,989
70% 70.7% 52,732 53,266
60% 59.6% 45,199 44,911
50% 50.8% 37,666 38,287
40% 40.4% 30,132 30,468
30% 30.7% 22,599 23,159
20% 20.3% 15,066 15,259
10% 9.4% 7,533 7,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

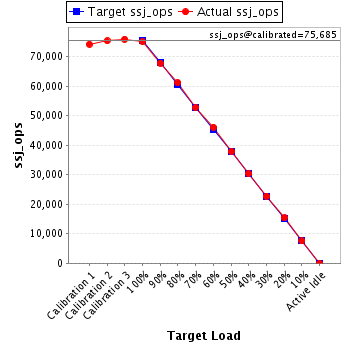

JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,285
Calibration 2     75,391
Calibration 3     75,979
ssj_ops@calibrated=75,685
100% 99.3% 75,685 75,161
90% 89.7% 68,116 67,890
80% 80.9% 60,548 61,213
70% 69.9% 52,979 52,866
60% 61.0% 45,411 46,152
50% 50.1% 37,842 37,881
40% 40.2% 30,274 30,428
30% 30.1% 22,705 22,783
20% 20.3% 15,137 15,370
10% 10.0% 7,568 7,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
