SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Powerleader PR2510D2 | ssj_ops@100% = 285,970 ssj_ops@100% per JVM = 142,985 |
||||
| Test Sponsor: | Powerleader Company | SPEC License #: | 3494 | Test Method: | Single Node |
| Tested By: | Powerleader Company | Test Location: | Shenzhen,Guangdong,China | Test Date: | Sep 22, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Jul-2008 | Publication: | Oct 14, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 287,774 | ||
| Calibration 2 | 287,276 | ||
| Calibration 3 | 286,766 | ||
| ssj_ops@calibrated=287,021 | |||
| 100% | 99.6% | 287,021 | 285,970 |
| 90% | 90.4% | 258,319 | 259,553 |
| 80% | 80.2% | 229,617 | 230,157 |
| 70% | 70.6% | 200,915 | 202,689 |
| 60% | 59.8% | 172,213 | 171,633 |
| 50% | 49.6% | 143,511 | 142,481 |
| 40% | 39.7% | 114,809 | 114,011 |
| 30% | 30.2% | 86,106 | 86,809 |
| 20% | 20.0% | 57,404 | 57,474 |
| 10% | 10.0% | 28,702 | 28,614 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | PR2510D2 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Powerleader |
| Model: | PR2510D2 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 2.66GHz, 2x6MB L2 shared, 1333MHz system bus |
| CPU Frequency (MHz): | 2660 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | DDR2-667 CL5;slots 1, 2, populated |
| Power Supply Quantity and Rating (W): | 1 x 500 |
| Power Supply Details: | Powerleader P/N:10500038 EFAP-S502 |
| Disk Drive: | 1 x 250GB 7200 RPM SATA Westen Digital |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition Service Pack 1 |
| OS Version: | SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |

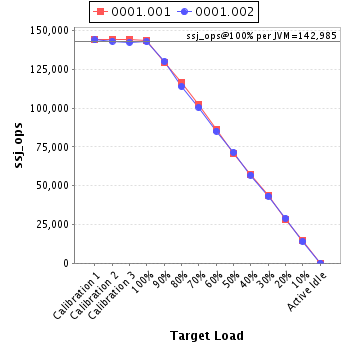

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 143,284 |
| 0001.002 | 142,686 |
| ssj_ops@100% | 285,970 |
| ssj_ops@100% per JVM | 142,985 |

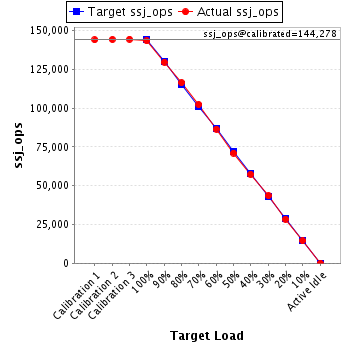

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 143,905 | ||
| Calibration 2 | 144,188 | ||
| Calibration 3 | 144,367 | ||
| ssj_ops@calibrated=144,278 | |||
| 100% | 99.3% | 144,278 | 143,284 |
| 90% | 89.8% | 129,850 | 129,610 |
| 80% | 80.6% | 115,422 | 116,262 |
| 70% | 70.9% | 100,994 | 102,293 |
| 60% | 59.9% | 86,567 | 86,483 |
| 50% | 49.2% | 72,139 | 71,027 |
| 40% | 39.7% | 57,711 | 57,245 |
| 30% | 30.2% | 43,283 | 43,528 |
| 20% | 19.7% | 28,856 | 28,458 |
| 10% | 10.1% | 14,428 | 14,525 |
| Active Idle | 0 | 0 | |

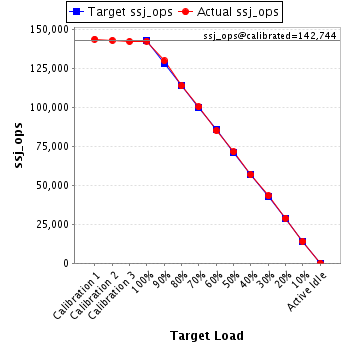

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 143,869 | ||
| Calibration 2 | 143,088 | ||
| Calibration 3 | 142,399 | ||
| ssj_ops@calibrated=142,744 | |||
| 100% | 100.0% | 142,744 | 142,686 |
| 90% | 91.0% | 128,469 | 129,943 |
| 80% | 79.8% | 114,195 | 113,895 |
| 70% | 70.3% | 99,921 | 100,396 |
| 60% | 59.7% | 85,646 | 85,150 |
| 50% | 50.1% | 71,372 | 71,455 |
| 40% | 39.8% | 57,097 | 56,766 |
| 30% | 30.3% | 42,823 | 43,281 |
| 20% | 20.3% | 28,549 | 29,016 |
| 10% | 9.9% | 14,274 | 14,089 |
| Active Idle | 0 | 0 | |
