SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ASUS RS160-E5 (Intel Xeon L5420 Processor, 2.50 GHz) | SPECpower_ssj2008 = 1,009 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Company Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Company Inc. | Test Location: | Taipei, Taiwan R.O.C. | Test Date: | Oct 30, 2008 |
| Hardware Availability: | Oct-2008 | Software Availability: | Sep-2008 | Publication: | Nov 20, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

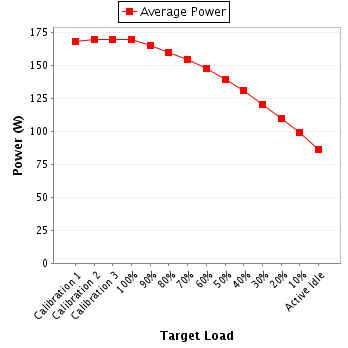

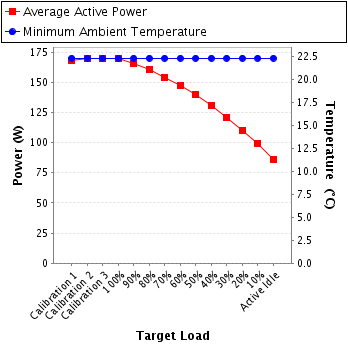

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 168 | 22.3 |
| Calibration 2 | 170 | 22.3 |
| Calibration 3 | 170 | 22.3 |
| 100% | 170 | 22.3 |
| 90% | 166 | 22.3 |
| 80% | 160 | 22.3 |
| 70% | 154 | 22.3 |
| 60% | 148 | 22.3 |
| 50% | 140 | 22.3 |
| 40% | 131 | 22.3 |
| 30% | 121 | 22.3 |
| 20% | 110 | 22.3 |
| 10% | 99.0 | 22.3 |
| Active Idle | 86.0 | 22.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G541516 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | ETC,TAIWAN |
| Accredited by: | ETC,TAIWAN |
| Calibration Label: | 08-05-BAC-358-03 |
| Date of Calibration: | 22-May-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300V | 0.785 | 2A | 0.962 | 168 | -- |
| Calibration 2 | 222 | 300V | 0.794 | 2A | 0.963 | 170 | -- |
| Calibration 3 | 222 | 300V | 0.795 | 2A | 0.963 | 170 | -- |
| 100% | 222 | 300V | 0.796 | 2A | 0.963 | 170 | -- |
| 90% | 223 | 300V | 0.774 | 2A | 0.961 | 166 | -- |
| 80% | 223 | 300V | 0.752 | 2A | 0.958 | 160 | -- |
| 70% | 222 | 300V | 0.727 | 2A | 0.955 | 154 | -- |
| 60% | 222 | 300V | 0.700 | 2A | 0.950 | 148 | -- |
| 50% | 222 | 300V | 0.666 | 2A | 0.944 | 140 | -- |
| 40% | 221 | 300V | 0.629 | 2A | 0.938 | 131 | -- |
| 30% | 221 | 300V | 0.587 | 2A | 0.930 | 121 | -- |
| 20% | 220 | 300V | 0.543 | 2A | 0.922 | 110 | -- |
| 10% | 220 | 300V | 0.494 | 2A | 0.913 | 99.0 | -- |
| Active Idle | 220 | 300V | 0.434 | 2A | 0.903 | 86.0 | -- |
