SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) | SPECpower_ssj2008 = 545 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Dec 2, 2008 |
| Hardware Availability: | Nov-2007 | Software Availability: | Apr-2008 | Publication: | Jan 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

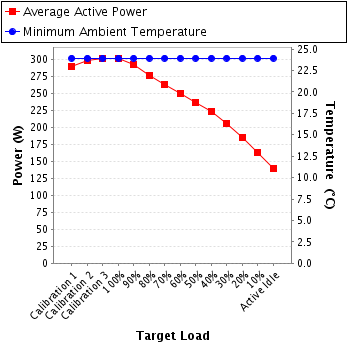

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 289 | 23.9 |
| Calibration 2 | 298 | 23.9 |
| Calibration 3 | 302 | 23.9 |
| 100% | 302 | 23.9 |
| 90% | 292 | 23.9 |
| 80% | 277 | 23.9 |
| 70% | 263 | 23.9 |
| 60% | 249 | 23.9 |
| 50% | 236 | 23.9 |
| 40% | 223 | 23.9 |
| 30% | 205 | 23.9 |
| 20% | 185 | 23.9 |
| 10% | 164 | 23.9 |
| Active Idle | 139 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 2565983 |
| Date of Calibration: | 20-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300V | 1.45 | 2A | 0.951 | 289 | -- |
| Calibration 2 | 209 | 300V | 1.50 | 2A | 0.952 | 298 | -- |
| Calibration 3 | 209 | 300V | 1.52 | 2A | 0.953 | 302 | -- |
| 100% | 208 | 300V | 1.52 | 2A | 0.953 | 302 | -- |
| 90% | 208 | 300V | 1.48 | 2A | 0.952 | 292 | -- |
| 80% | 208 | 300V | 1.40 | 2A | 0.949 | 277 | -- |
| 70% | 208 | 300V | 1.33 | 2A | 0.945 | 263 | -- |
| 60% | 209 | 300V | 1.27 | 2A | 0.942 | 249 | -- |
| 50% | 209 | 300V | 1.21 | 2A | 0.938 | 236 | -- |
| 40% | 209 | 300V | 1.14 | 2A | 0.934 | 223 | -- |
| 30% | 209 | 300V | 1.06 | 2A | 0.928 | 205 | -- |
| 20% | 209 | 300V | 0.965 | 2A | 0.918 | 185 | -- |
| 10% | 209 | 300V | 0.866 | 2A | 0.904 | 164 | -- |
| Active Idle | 209 | 300V | 0.749 | 2A | 0.885 | 139 | -- |
