SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Supermicro Inc. 1021M-UR+B | SPECpower_ssj2008 = 1,044 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Dec 19, 2008 |
| Hardware Availability: | Feb-2009 | Software Availability: | Dec-2008 | Publication: | Feb 25, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

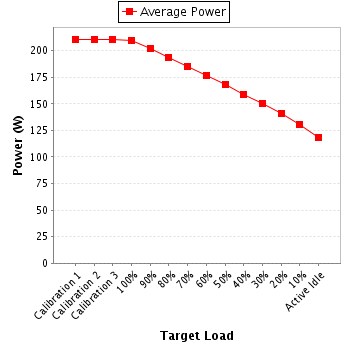

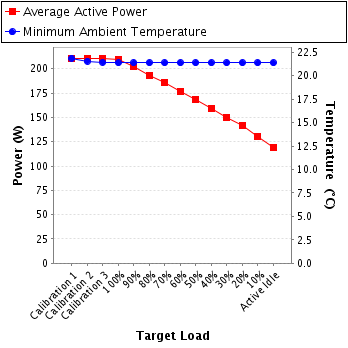

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 211 | 21.9 |
| Calibration 2 | 210 | 21.6 |
| Calibration 3 | 211 | 21.4 |
| 100% | 210 | 21.4 |
| 90% | 202 | 21.4 |
| 80% | 193 | 21.4 |
| 70% | 185 | 21.4 |
| 60% | 177 | 21.4 |
| 50% | 168 | 21.4 |
| 40% | 159 | 21.4 |
| 30% | 150 | 21.4 |
| 20% | 141 | 21.4 |
| 10% | 130 | 21.4 |
| Active Idle | 119 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB53037 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 08-0220 |
| Date of Calibration: | 04-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300 | 1.09 | 2 | 0.943 | 211 | -- |
| Calibration 2 | 205 | 300 | 1.09 | 2 | 0.943 | 210 | -- |
| Calibration 3 | 205 | 300 | 1.09 | 2 | 0.943 | 211 | -- |
| 100% | 205 | 300 | 1.08 | 2 | 0.942 | 210 | -- |
| 90% | 205 | 300 | 1.05 | 2 | 0.941 | 202 | -- |
| 80% | 205 | 300 | 1.00 | 2 | 0.940 | 193 | -- |
| 70% | 205 | 300 | 0.964 | 2 | 0.938 | 185 | -- |
| 60% | 205 | 300 | 0.921 | 2 | 0.936 | 177 | -- |
| 50% | 205 | 300 | 0.877 | 2 | 0.934 | 168 | -- |
| 40% | 205 | 300 | 0.833 | 2 | 0.930 | 159 | -- |
| 30% | 205 | 300 | 0.790 | 2 | 0.927 | 150 | -- |
| 20% | 205 | 300 | 0.746 | 2 | 0.922 | 141 | -- |
| 10% | 205 | 300 | 0.694 | 2 | 0.916 | 130 | -- |
| Active Idle | 205 | 300 | 0.638 | 2 | 0.906 | 119 | -- |
